Convertible Top Motor
Removal
NOTE: Removal steps in this procedure may contain installation details.
1. On both sides, remove the rear quarter panel speakers. Refer to: Rear Quarter Panel Speaker (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation). Refer to: Rear Quarter Panel Speaker (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

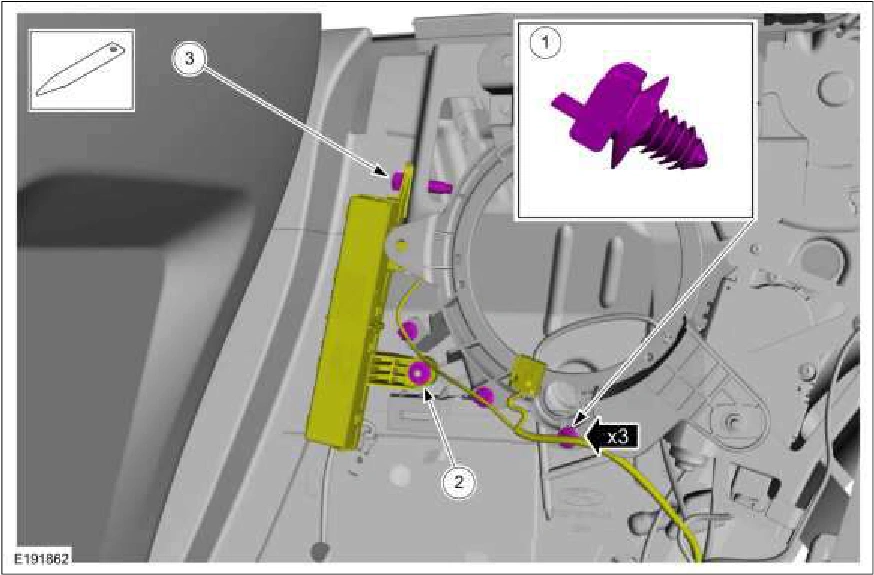

2. On the RH side only. Position aside the RTM and bracket assembly.
1. Disconnect the RTM wiring harness clips from the speaker bracket. Torque : 93 lb.in (10.5 Nm)
2. Remove the RTM bracket nut. Torque : 71 lb.in (8 Nm)
3. Remove the RTM bracket bolt and position the RTM and bracket assembly aside. Torque : 17 lb.in (1.9 Nm)
3. NOTE: RH side shown, LH side similar.
On both sides. Remove the rear quarter panel speaker brackets.
1. Remove the speaker bracket stud. Torque : 93 lb.in (10.5 Nm)
2. Remove the speaker bracket nuts and the speaker bracket. Torque : 71 lb.in (8 Nm)
