Convertible Top Material — 2016 workshop reference 1615

Use the General Equipment: Electric Drill Use the General Equipment: Rivet Gun

2. Remove the rivets from cross bow 2.

3. Remove the rivets from cross bow 3.

Convertible Top Material — original illustration 1, reference 1615Original colors & callouts · Select to enlarge

8. NOTE: RH side shown, LH side similar.

On both sides, disconnect the rear window defrost harness.

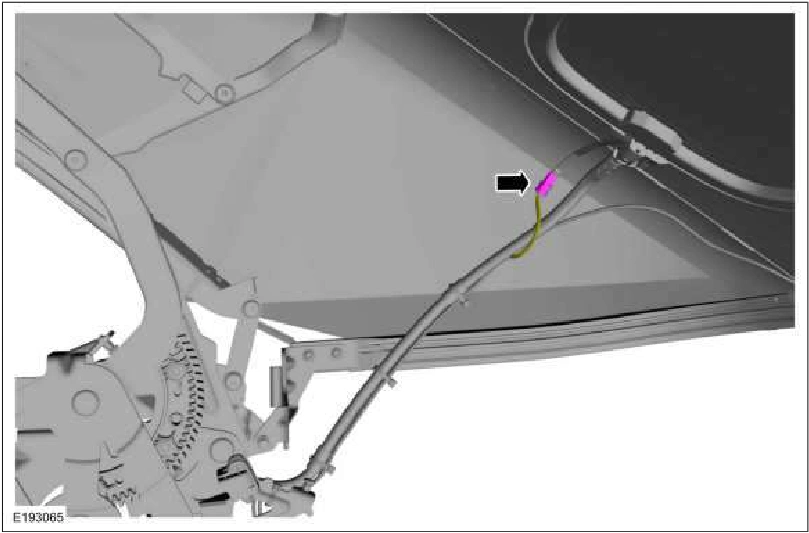

Convertible Top Material — original illustration 2, reference 1615Original colors & callouts · Select to enlarge

9. NOTE: RH side shown, LH side similar.

Remove the rear glass tension rod.

1. Using a small flat-bladed screwdriver, press in on the retainer tabs to release the rear glass tension rod. Use the General Equipment: Flat-Bladed Screwdriver

2. Pull out on the rear glass tension rod to remove from the rear glass frame.

Source reference 1615
