2016 workshop · Body & Paint

Convertible Top Material

501-18 Convertible Top

2016 MustangConvertibleReference 1,613 / 6,619HTML edition
← Chapter contentsProcedure contents

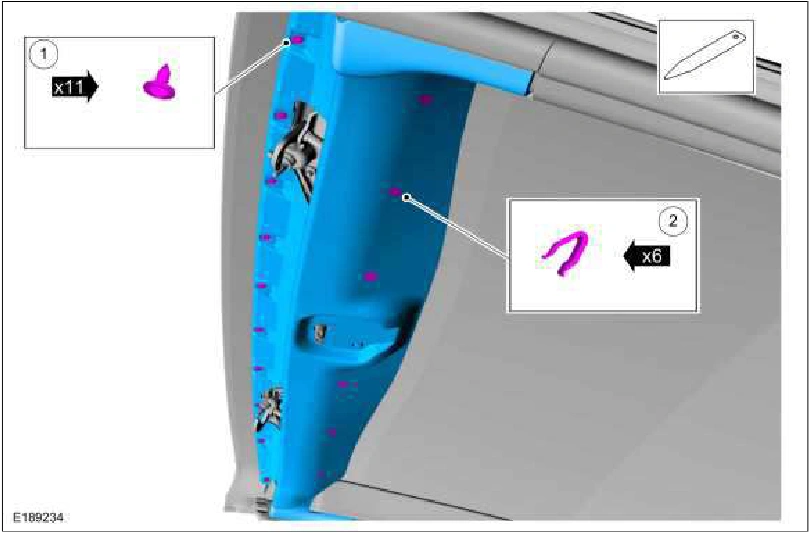

Convertible Top Material — original illustration 1, reference 1613Original colors & callouts · Select to enlarge

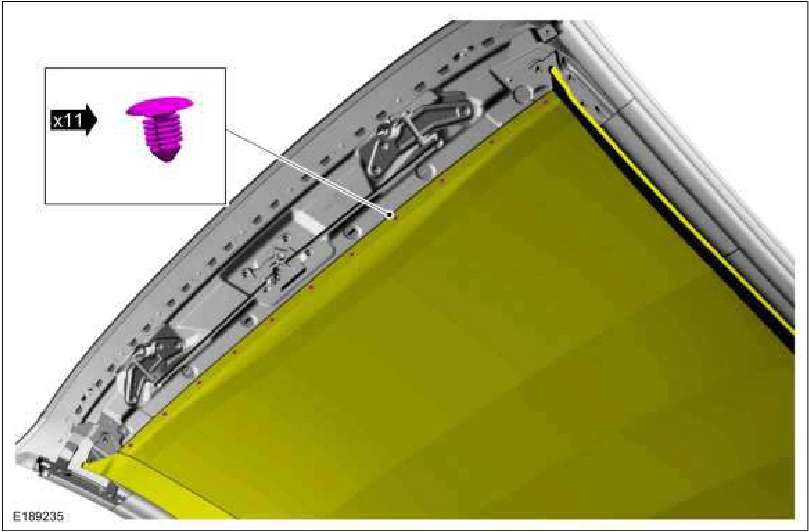

4. Remove the convertible top headliner push pin retainers along the back of the convertible top front panel.

Convertible Top Material — original illustration 2, reference 1613Original colors & callouts · Select to enlarge

5. NOTE: The headliner tension bracket will still be attached to the headliner.

LH side shown, RH side similar.

On both sides, remove the headliner tension bracket retainers and bracket from the convertible top front panel. Torque : 18 lb.in (2 Nm)

Source reference 1613
