9. NOTE: The convertible top headliner trim ring is permanently attached to the convertible top headliner, and the rear window glass frame is permanently attached to the convertible top material.
Some retaining clips may stay on the rear window glass frame. Remove from the rear window glass frame and position all retaining clips on the convertible top headliner trim ring at the location where they were removed.
For installation, begin with the top 2 corners when attaching the convertible top headliner trim ring to the rear window glass frame. This ensures proper alignment as the convertible top headliner trim ring is attached around the rear window glass frame.

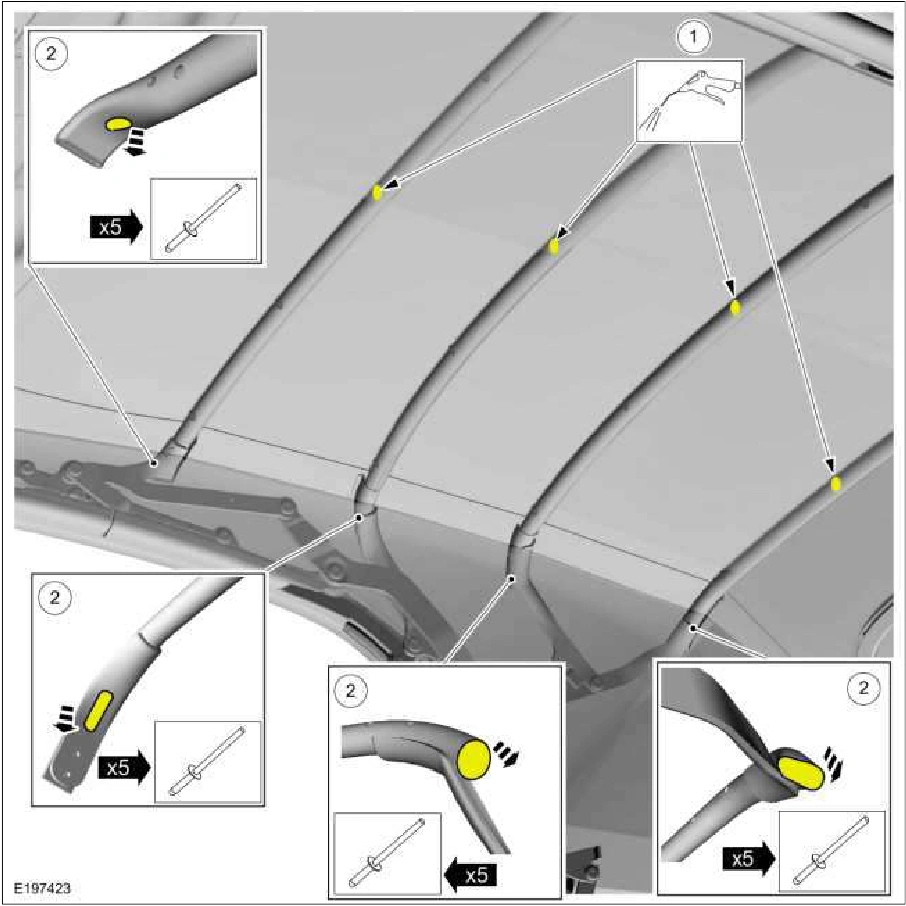

View shown is with the convertible top off vehicle for clarity.
Carefully pry the convertible top headliner trim ring from the rear window glass frame.
