57. Dispose of the deployed safety belt anchor, buckle or retractor in the same manner as any other part to be scrapped.
Safety Canopy® and Side Air Curtains - In-Vehicle Deployment
NOTE: The Safety Canopy® deployment for a scrapped vehicle occurs in its installed position in the vehicle.
NOTE: A typical Safety Canopy® disposal is shown.
58. Depower the SRS Refer to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures).

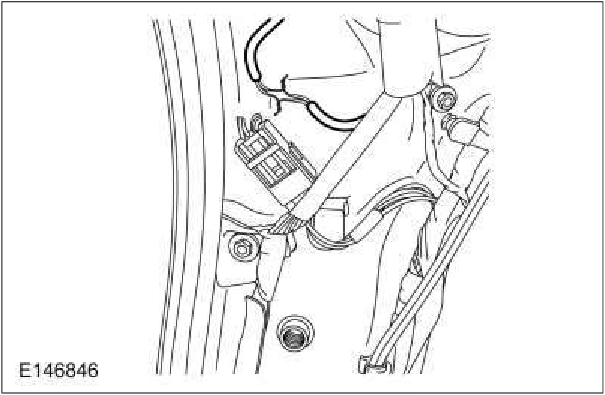

59. Access the Safety Canopy® /side air curtain electrical connectors. For additional information, refer to the appropriate procedure in this section.
60. Cut each of the Safety Canopy® /side air curtain wires, leaving at least 101.6 mm (4 in) to work with.
61. Remove any sheathing (if present) and strip the insulation from the ends of the cut wires.
62. NOTE: Typical Safety Canopy® /side air curtain with 2 loops shown, other Safety Canopy® /side air curtains with 2 loops are similar.
For Safety Canopy® /side air curtains with multiple loops, twist together a wire from each loop then repeat for the remaining wires from each loop.
63. Make a jumper harness to deploy the safety belt anchor, buckle or retractor by obtaining 2 wires (20
gauge minimum) at least 9.14 m (30 ft). At one end of the jumper harness, connect the wires together.
64. Using the end of the jumper harness where the wires are not connected together, attach each wire of the jumper harness to each wire of the Safety Canopy® /side air curtain or to the twisted-together wires if multiple loops. Use tape or other insulating material to make sure the leads do not make contact with each other.
