Rear Body Dimensions

501-26 Body Repairs - Vehicle Specific Information and Tolerance

2016 MustangReference 2,218 / 6,619HTML edition
← Chapter contents

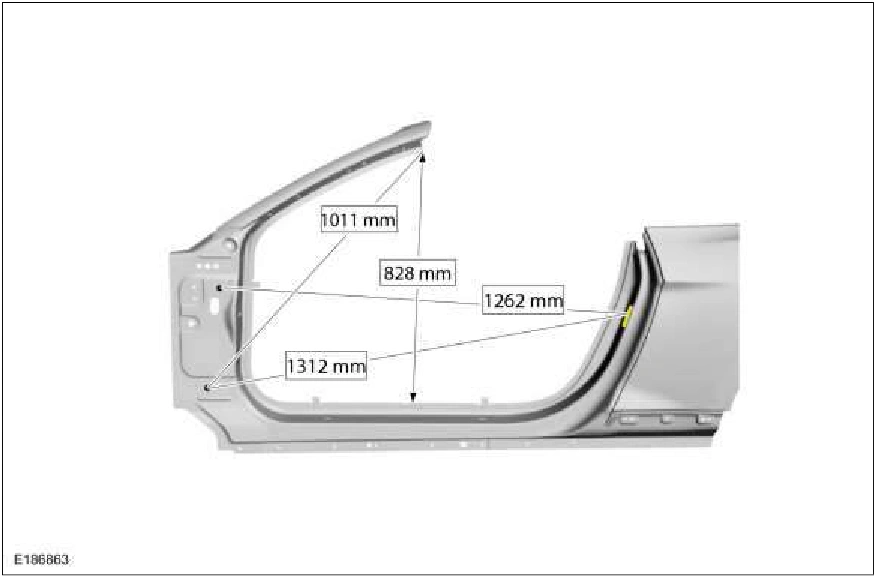

501-26 Body Repairs - Vehicle Specific Information and Tolerance — original illustration 1, reference 2218Original colors & callouts · Select to enlarge

Rear Body Dimensions

NOTE: All measurements are on center unless otherwise indicated.

Dimensions apply to coupe and convertible.

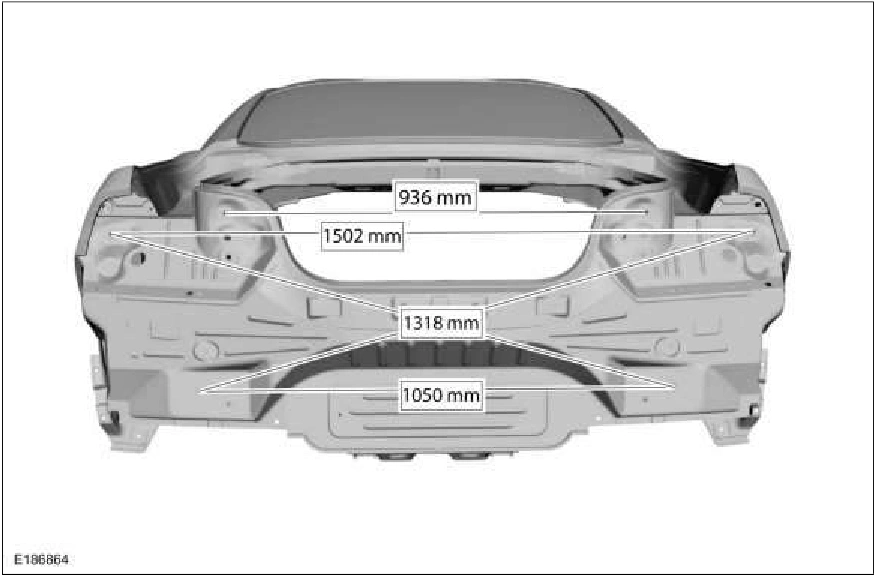

501-26 Body Repairs - Vehicle Specific Information and Tolerance — original illustration 2, reference 2218Original colors & callouts · Select to enlarge

Under Body Measurements

NOTE: All measurements are on center unless otherwise indicated.

Dimensions apply to coupe and convertible.
