Item Description Margin Specification Flushness — 2016 workshop reference 2216

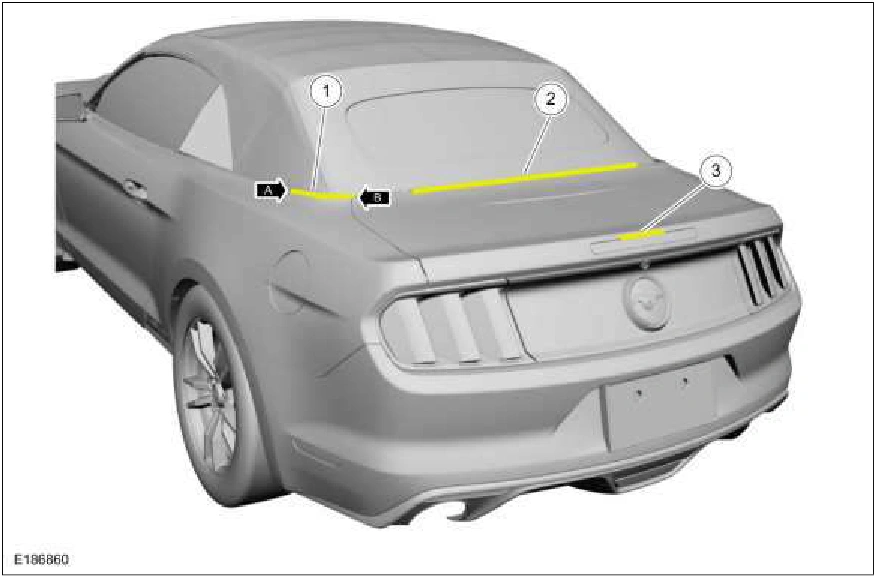

501-26 Body Repairs - Vehicle Specific Information and Tolerance — original illustration 1, reference 2216Original colors & callouts · Select to enlarge

Item	Description	Margin Specification	Flushness Specification
1	Convertible top moulding-to-body side	0.0 mm at point A to 5.0 mm at point B	—
2	Convertible top-to-luggage compartment lid	5.0 mm ± 4.7 mm (margin parallelism within 3.7 mm)	—
3	Luggage compartment lid-to-CHMSL	1.0 mm ± 0.8 mm	0.5 mm ± 0.8 mm

Item

Description

Margin Specification

Flushness Specification

Convertible top moulding-to-body side

0.0 mm at point A to 5.0 mm at point B

—

Convertible top-to-luggage compartment lid

5.0 mm ± 4.7 mm (margin parallelism within

3.7 mm)

—

Luggage compartment lid-to-CHMSL

1.0 mm ± 0.8 mm

0.5 mm ± 0.8 mm

Under Hood Dimensions

NOTE: All measurements are on center unless otherwise indicated.
