Body Margins - Convertible Front

1

Tail lamp-to-fascia

2.0 mm ± 2.0 mm

—

2

Tail lamp-to-body side

2.0 mm ± 1.5 mm

1.5 mm ± 1.7 mm

3

Luggage compartment lid-to-body side

3.0 mm ± 1.5 mm

0.0 mm ± 2.0 mm

4

Rear window-to-body side

3.0 mm ± 1.7 mm

-3.0 mm ± 1.5 mm

5

CHMSL-to-roof

3.0 ± 1.0 mm

-1.5 mm ± 1.5 mm

6

CHMSL-to-rear window

2.5 mm ± 2.2 mm

—

7

Luggage compartment lid moulding-to-Luggage compartment lid

—

-2.0 mm + 1.4 mm ± 0.0 mm

8

Luggage compartment lid moulding-to-fascia

6.0 mm ± 3.4 mm

—

9

Rear window-to-luggage compartment lid

3.0 mm ± 1.5 mm

—

10

Tail lamp-to-luggage compartment lid moulding

4.8 mm ± 3.0 mm

0.0 mm ± 3.0 mm

11

Luggage compartment lid-to-tail lamp

—

—

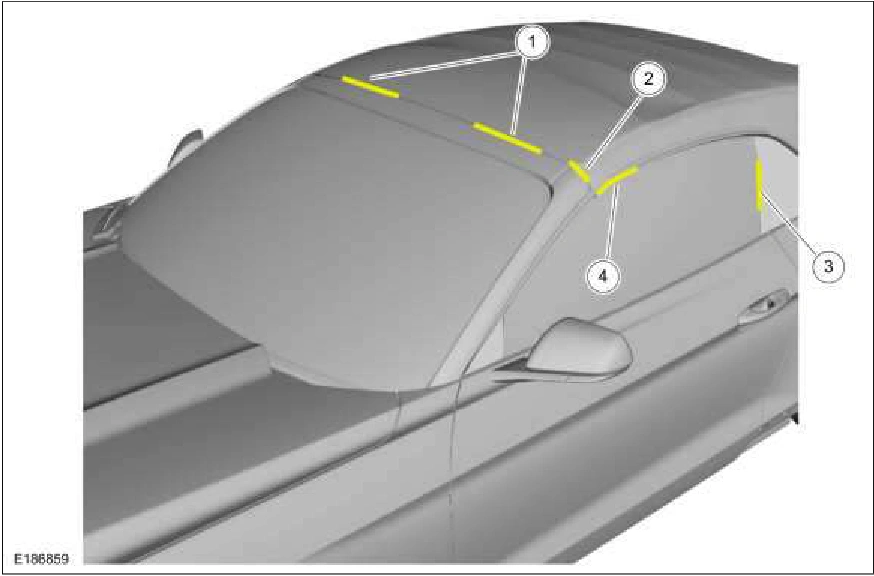

1

Convertible top-to-roof

9.25 mm ± 2.0 mm

1.5 mm ± 1.9 mm

2

Convertible top-to-A-pillar

8.8 mm ± 2.4 mm

1.5 mm ± 2.7 mm

3

Door glass-to-quarter window glass

8.0 mm ± 1.5 mm

0.0 mm ± 1.5 mm

4

Convertible top-to-seal retainer

8.5 mm ± 2.7 mm

1.5 mm ± 2.5 mm
