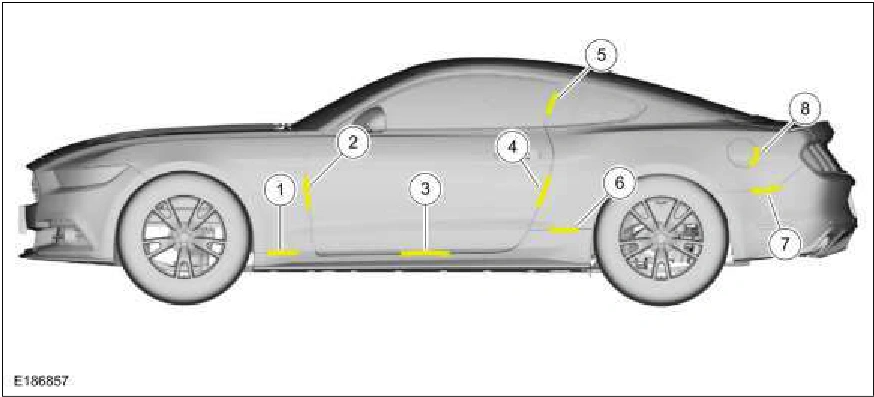

Item Description Margin Specification Flushness Specification

1

Fender-to-rocker moulding

0.0 mm ± 1.1 mm

0.75 mm ± 1.1 mm

2

Door-to-fender

3.4 mm ± 1.5 mm

-0.75 mm ± 1.1 mm

3

Door-to-rocker moulding

5.0 mm ± 2.0 mm

—

4

Door-to-body side

3.4 mm ± 1.5 mm

0.0 mm ± 2.0 mm

5

Door glass-to-quarter glass

10.0 mm ± 1.5 mm

0.0 mm ± 2.0 mm

6

Body side-to-rocker moulding

0.0 mm ± 1.1 mm

0.75 mm ± 1.2 mm

7

Rear fascia-to-body side

0.0 mm + 0.5 mm ± 0.0 mm

-0.75 mm ± 1.7 mm

8

Fuel door-to-body side

2.2 mm ± 1.2 mm

-1.0 mm ± 1.2 mm
