Front Door Opening Dimensions - Coupe — 2016 workshop reference 2217

501-26 Body Repairs - Vehicle Specific Information and Tolerance — original illustration 1, reference 2217Original colors & callouts · Select to enlarge

Front Door Opening Dimensions - Coupe

NOTE: All measurements are on center unless otherwise indicated.

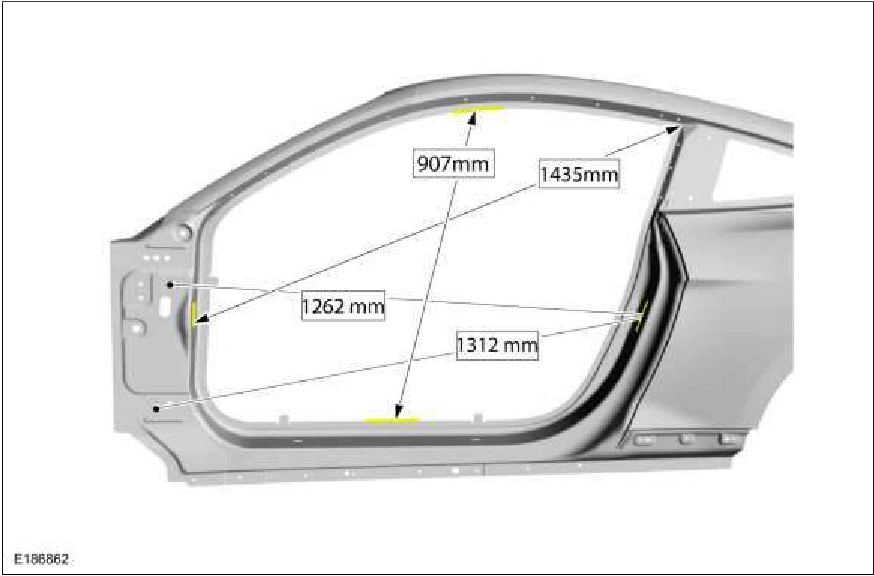

501-26 Body Repairs - Vehicle Specific Information and Tolerance — original illustration 2, reference 2217Original colors & callouts · Select to enlarge

Front Door Opening Dimensions - Convertible

NOTE: All measurements are on center unless otherwise indicated.
