Front Side Member and Fender Apron Panel LH

501-27 Front End Sheet Metal Repairs

2016 MustangReference 2,252 / 6,619HTML edition

← Chapter contents Procedure contents

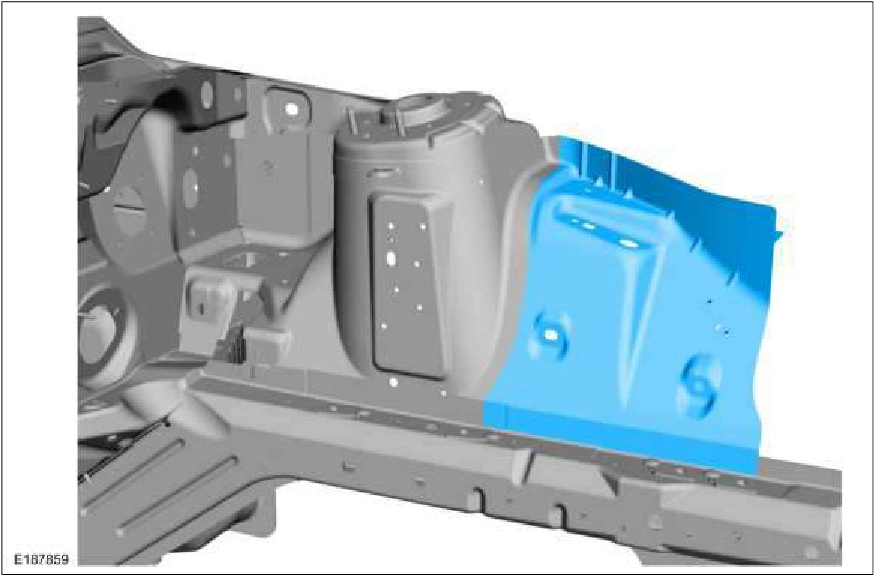

Front Side Member and Fender Apron Panel LH — original illustration 1, reference 2252Original colors & callouts · Select to enlarge

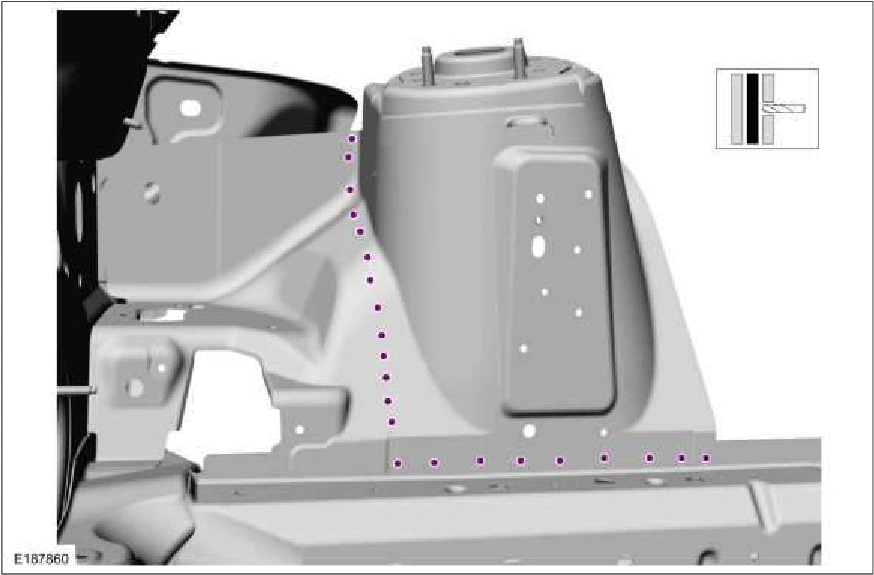

9. Drill out the spot welds. Use the General Equipment: Spot Weld Drill Bit

Front Side Member and Fender Apron Panel LH — original illustration 2, reference 2252Original colors & callouts · Select to enlarge

10. Remove the panel.
