Front Side Member and Fender Apron Panel LH

501-27 Front End Sheet Metal Repairs

2016 MustangReference 2,254 / 6,619HTML edition
← Chapter contentsProcedure contents
Front Side Member and Fender Apron Panel LH — original illustration 1, reference 2254Original colors & callouts · Select to enlarge

13. NOTE: Cutline option depending on extent of damage.

Mark cutline and cut through inner frame rail. Use the General Equipment: Air Body Saw

Front Side Member and Fender Apron Panel LH — original illustration 2, reference 2254Original colors & callouts · Select to enlarge

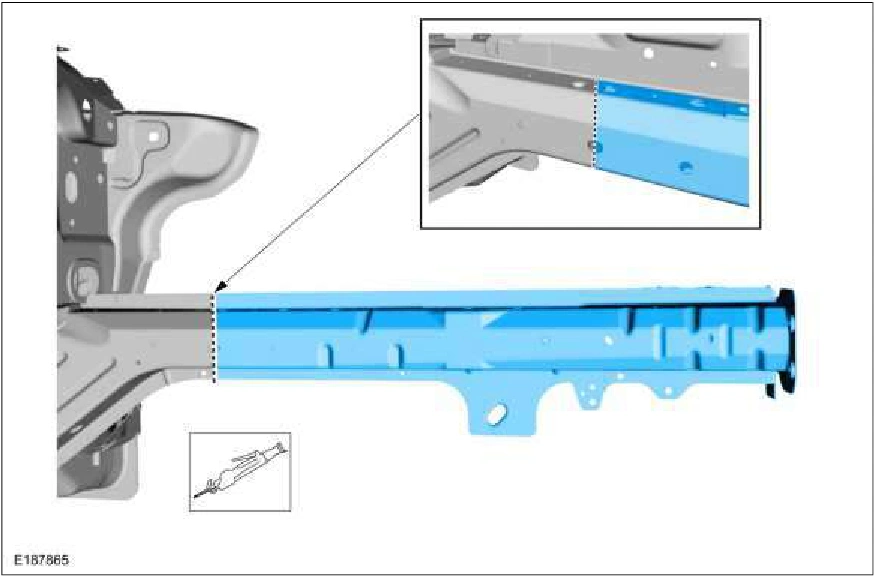

14. NOTE: Cutline option depending on extent of damage.

Mark cutline and cut through outer frame rail. Use the General Equipment: Spot Weld Drill Bit Use the General Equipment: Air Body Saw
