Front Side Member and Fender Apron Panel LH — 2016 workshop reference 2256

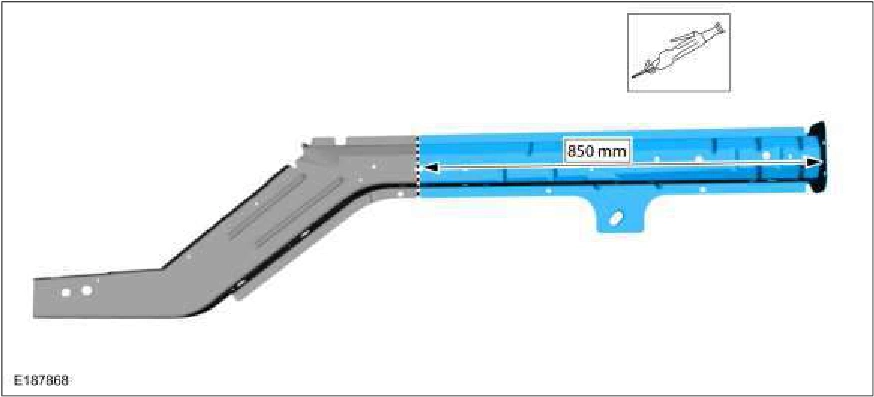

Front Side Member and Fender Apron Panel LH — original illustration 1, reference 2256Original colors & callouts · Select to enlarge

4. NOTE: Check for dimensional accuracy before welding.

Install and weld the outer frame member. Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation). Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Locking Pliers

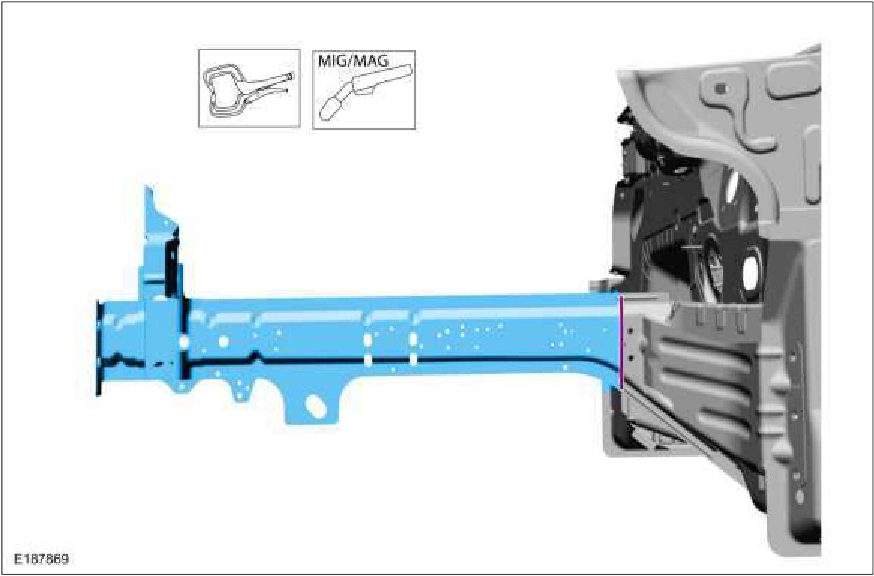

Front Side Member and Fender Apron Panel LH — original illustration 2, reference 2256Original colors & callouts · Select to enlarge

5. Install and weld the inner frame member. Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Locking Pliers

Source reference 2256
