Front Side Member and Fender Apron Panel LH — 2016 workshop reference 2259

Front Side Member and Fender Apron Panel LH — original illustration 1, reference 2259Original colors & callouts · Select to enlarge

10. Install the apron reinforcement panel and weld. Use the General Equipment: Resistance Spotwelding Equipment Use the General Equipment: Locking Pliers

Front Side Member and Fender Apron Panel LH — original illustration 2, reference 2259Original colors & callouts · Select to enlarge

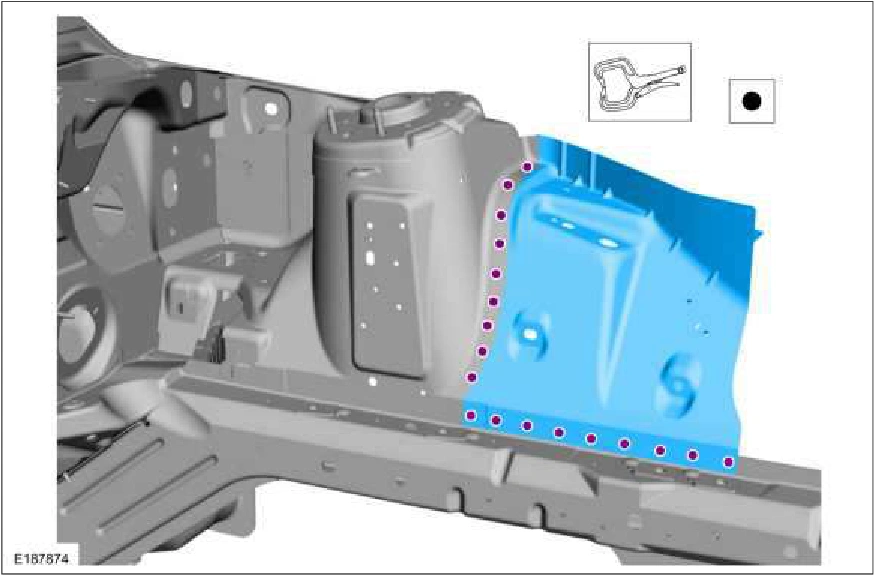

11. Install the fender apron bracket and weld. Use the General Equipment: Resistance Spotwelding Equipment
