Front Side Member Section — 2016 workshop reference 2262

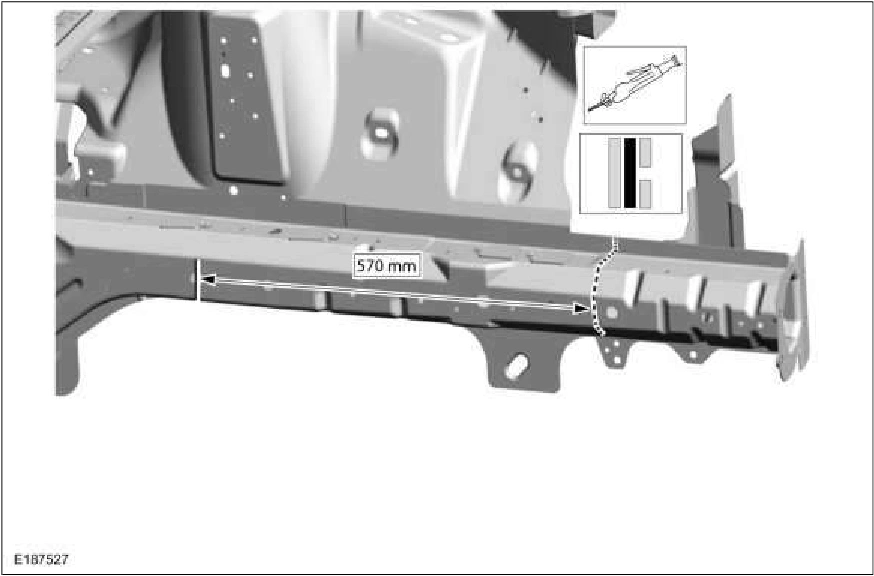

Front Side Member Section — original illustration 1, reference 2262Original colors & callouts · Select to enlarge

4. Mark a cutline and cut through the outer frame rail as indicated. Use the General Equipment: Air Body Saw

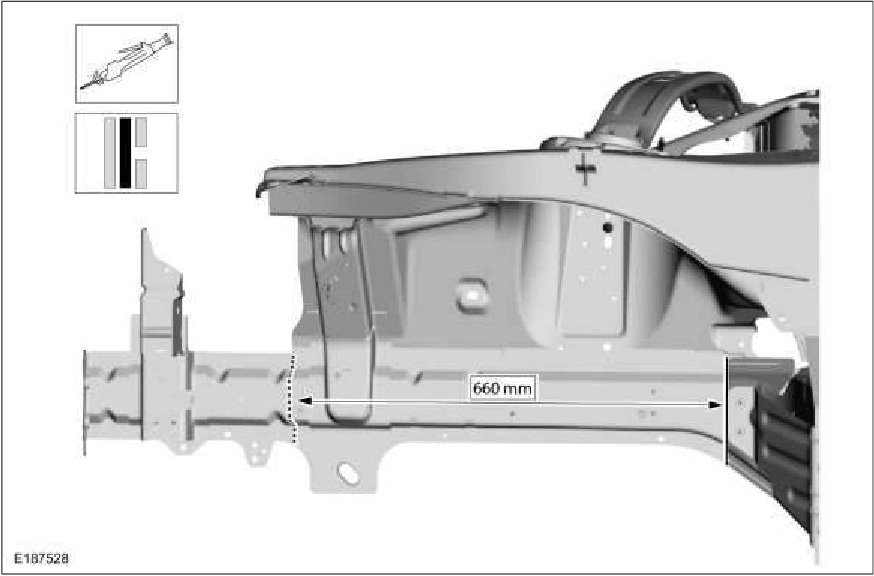

Front Side Member Section — original illustration 2, reference 2262Original colors & callouts · Select to enlarge

5. Remove the sectioned portion of the frame rail.
