Front Side Member Section — 2016 workshop reference 2265

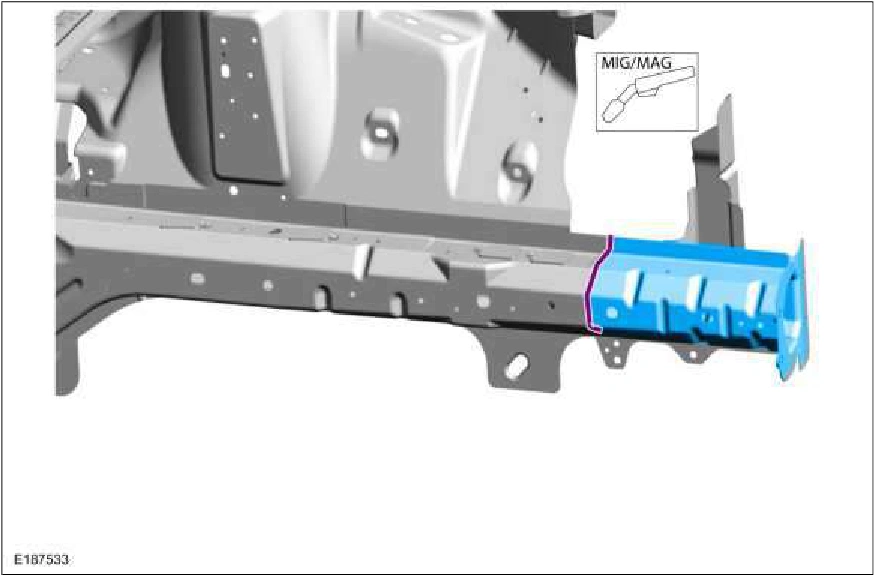

Front Side Member Section — original illustration 1, reference 2265Original colors & callouts · Select to enlarge

7. Metal finish the repair area using typical metal finishing techniques.

8. Sealing work: All areas must be sealed to production level. Material : Seam Sealer / TA-2-B

9. Refinish using a Ford approved paint system.

10. Restore corrosion protection. Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).

11. Install the following items:

1. Refer to: Fender (501-02 Front End Body Panels, Removal and Installation).

2. Refer to: Front Bumper (501-19 Bumpers, Removal and Installation).

3. Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

4. Refer to: Radiator (303-03A Engine Cooling - 2.3L EcoBoost (231kW/314PS), Removal and Installation).

5. Refer to: Radiator (303-03B Engine Cooling - 3.7L Duratec (227kW/301PS), Removal and Installation).

6. Refer to: Radiator (303-03C Engine Cooling - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

7. Refer to: Engine (303-01A Engine - 2.3L EcoBoost (231kW/314PS), Removal).

8. Refer to: Engine (303-01B Engine - 3.7L Duratec (227kW/301PS), Removal).

9. Refer to: Engine (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal).

10. Refer to: Front Subframe - 2.3L EcoBoost (201kW/273PS) (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

11. Refer to: Front Subframe - 3.7L Duratec (227kW/301PS)/5.0L 32V Ti-VCT/5.2L 32V Ti-VCT (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

Source reference 2265
