Front Side Member Section — 2016 workshop reference 2264

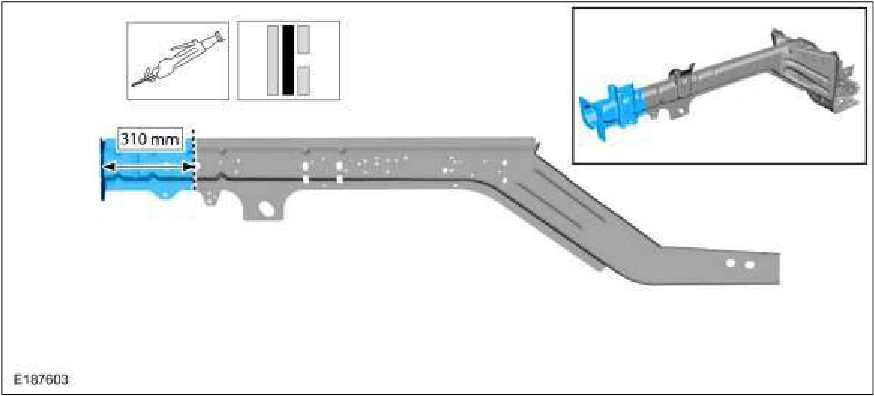

Front Side Member Section — original illustration 1, reference 2264Original colors & callouts · Select to enlarge

4. Check for dimensional accuracy before welding. Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

5. NOTE: Create a backer from a piece of the frame rail. This will create a strong joint.

Install the frame rail replacement section and seam weld the outer frame rail. Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Locking Pliers

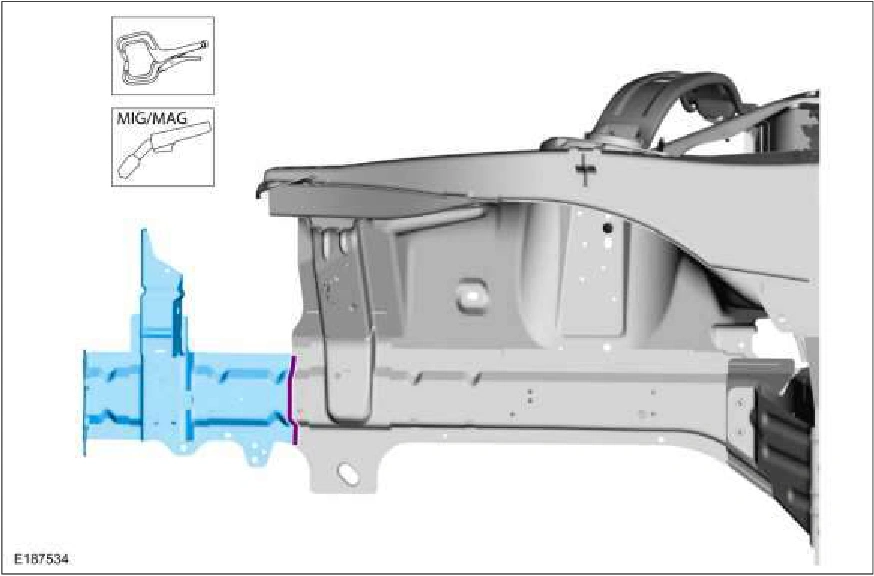

Front Side Member Section — original illustration 2, reference 2264Original colors & callouts · Select to enlarge

6. Seam weld along the joint on the inner frame rail. Use the General Equipment: MIG/MAG Welding Equipment
