Front Side Member Section — 2016 workshop reference 2263

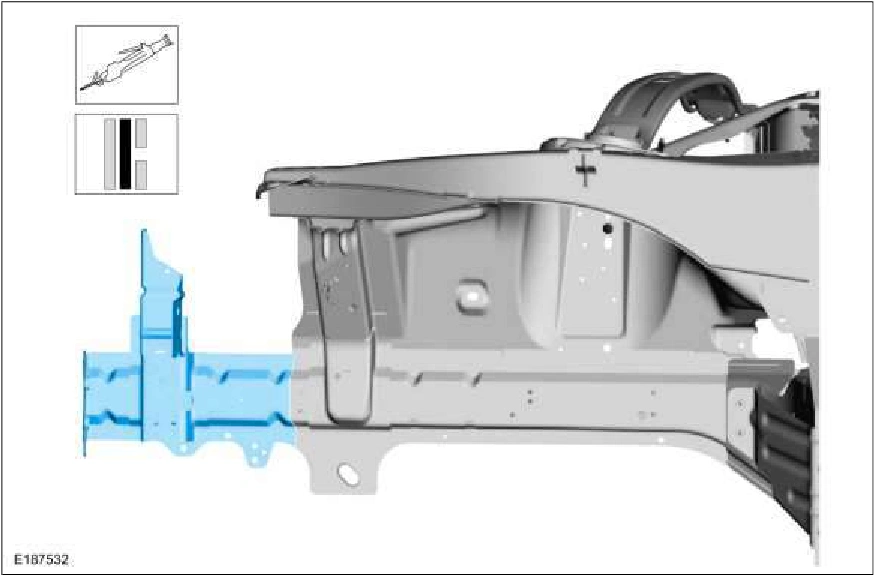

Front Side Member Section — original illustration 1, reference 2263Original colors & callouts · Select to enlarge

Installation

1. Refer to: Joining Techniques (501-25 Body Repairs - General Information, General Procedures).

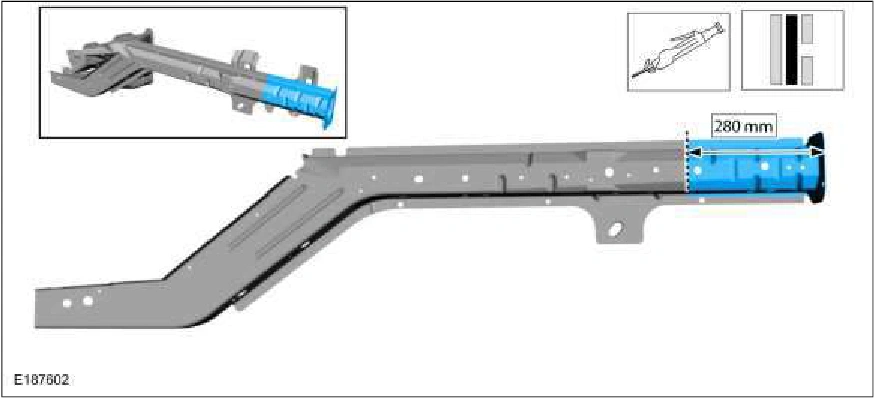

2. NOTE: Inner frame rail portion of the service assembly shown for clarity.

Mark and cut replacement portion of the inner frame rail from the service replacement assembly. Use the General Equipment: Air Body Saw

Front Side Member Section — original illustration 2, reference 2263Original colors & callouts · Select to enlarge

3. NOTE: Outer frame rail portion of the service assembly shown for clarity.

Mark and cut replacement portion of the outer frame rail from the service replacement assembly. Use the General Equipment: 8 mm Drill Bit
