2016 workshop · Body & Paint

Front Side Member and Fender Apron Panel LH

501-27 Front End Sheet Metal Repairs

2016 MustangReference 2,258 / 6,619HTML edition
← Chapter contentsProcedure contents

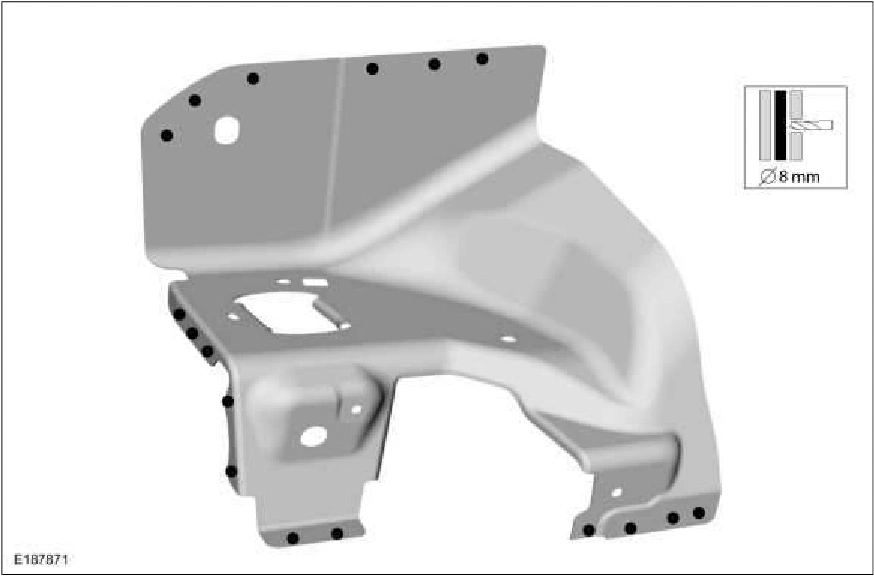

Front Side Member and Fender Apron Panel LH — original illustration 1, reference 2258Original colors & callouts · Select to enlarge

8. Install the apron reinforcement panel and weld. Use the General Equipment: MIG/MAG Welding Equipment

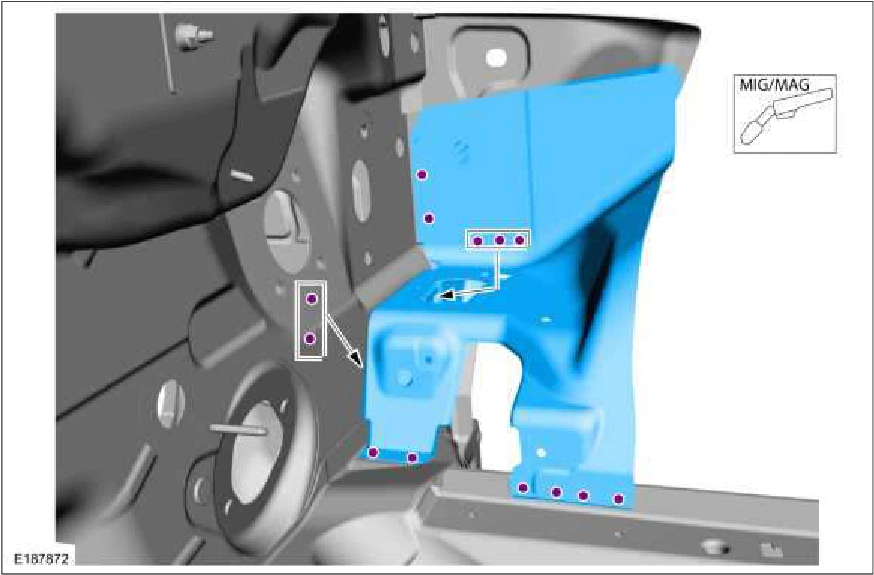

Front Side Member and Fender Apron Panel LH — original illustration 2, reference 2258Original colors & callouts · Select to enlarge

9. Install the apron reinforcement panel and weld. Use the General Equipment: Locking Pliers Use the General Equipment: Locking Pliers
