Front Side Member and Fender Apron Panel LH — 2016 workshop reference 2255

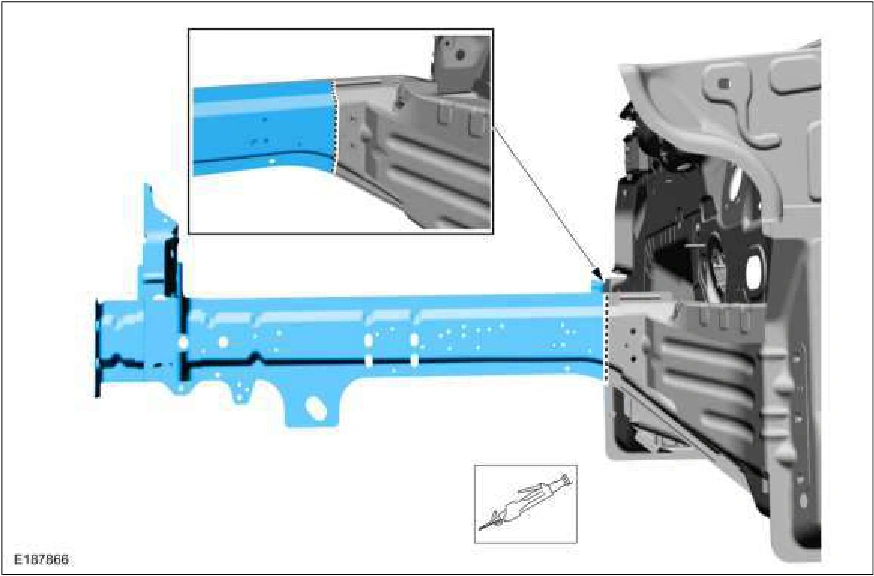

Front Side Member and Fender Apron Panel LH — original illustration 1, reference 2255Original colors & callouts · Select to enlarge

Installation

1. Refer to: Joining Techniques (501-25 Body Repairs - General Information, General Procedures).

2. NOTE: Frame member portion of service assembly shown for clarity.

Mark and cut outer frame member from the replacement part.

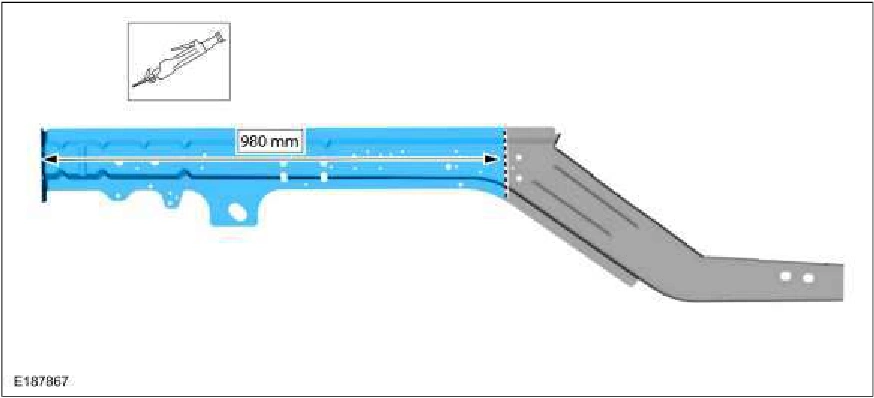

Front Side Member and Fender Apron Panel LH — original illustration 2, reference 2255Original colors & callouts · Select to enlarge

3. NOTE: Frame member portion of service assembly shown for clarity.

Mark and cut inner frame member from the replacement part. Use the General Equipment: Air Body Saw
