Front Side Member and Fender Apron Panel LH

501-27 Front End Sheet Metal Repairs

2016 MustangReference 2,257 / 6,619HTML edition

← Chapter contents Procedure contents

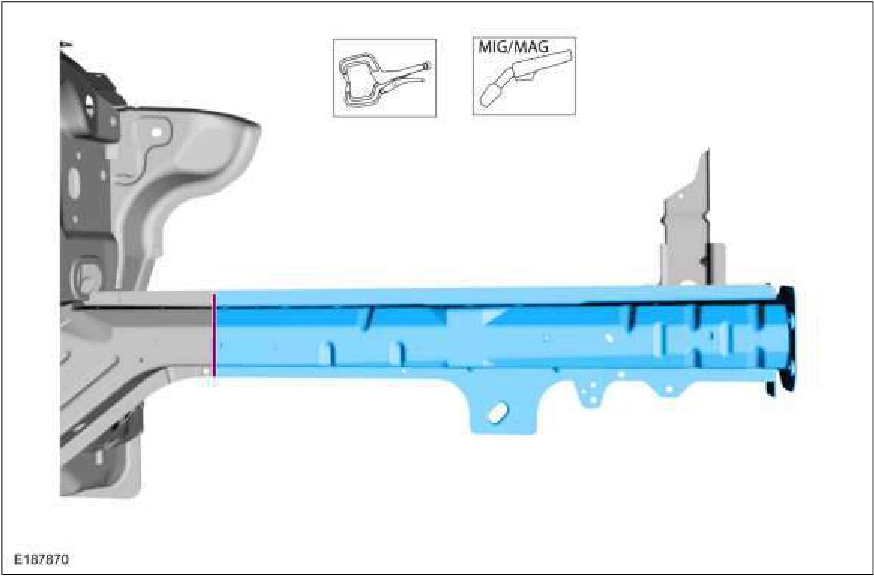

Front Side Member and Fender Apron Panel LH — original illustration 1, reference 2257Original colors & callouts · Select to enlarge

6. Spot weld the frame member assembly. Use the General Equipment: Resistance Spotwelding Equipment

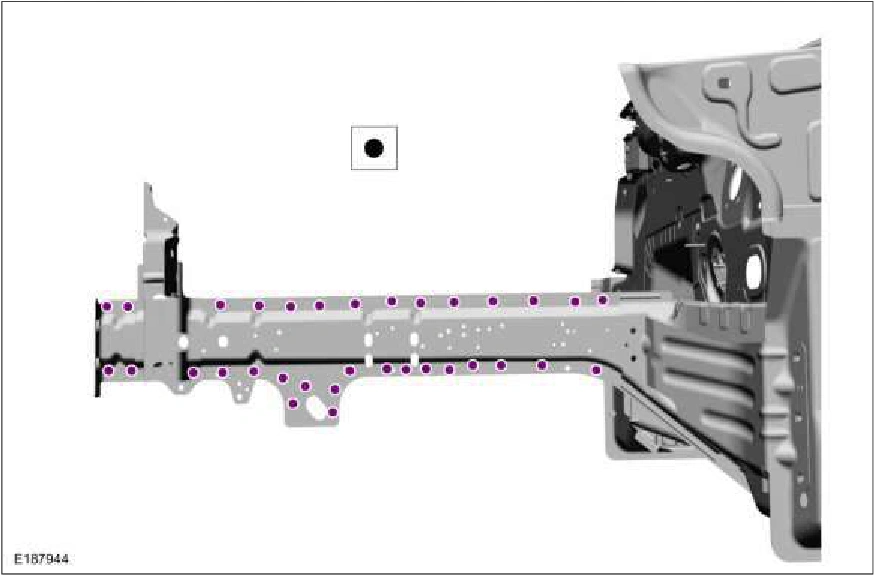

Front Side Member and Fender Apron Panel LH — original illustration 2, reference 2257Original colors & callouts · Select to enlarge

7. Drill plug weld holes in the replacement panel. Use the General Equipment: 8 mm Drill Bit

Source reference 2257
