Roof Panel

501-28 Roof Sheet Metal Repairs

2016 MustangReference 2,267 / 6,619HTML edition
← Chapter contentsProcedure contents
Roof Panel — original illustration 1, reference 2267Original colors & callouts · Select to enlarge

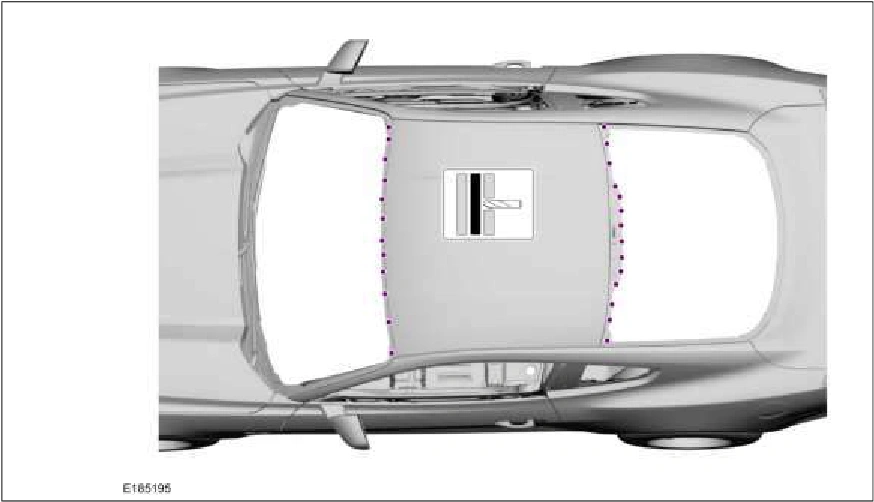

4. NOTE: Leave as much NVH foam intact on the roof reinforcements as possible.

Cut the NVH foam between the front and rear roof reinforcements and the roof panel. Use the General Equipment: Knife

Roof Panel — original illustration 2, reference 2267Original colors & callouts · Select to enlarge

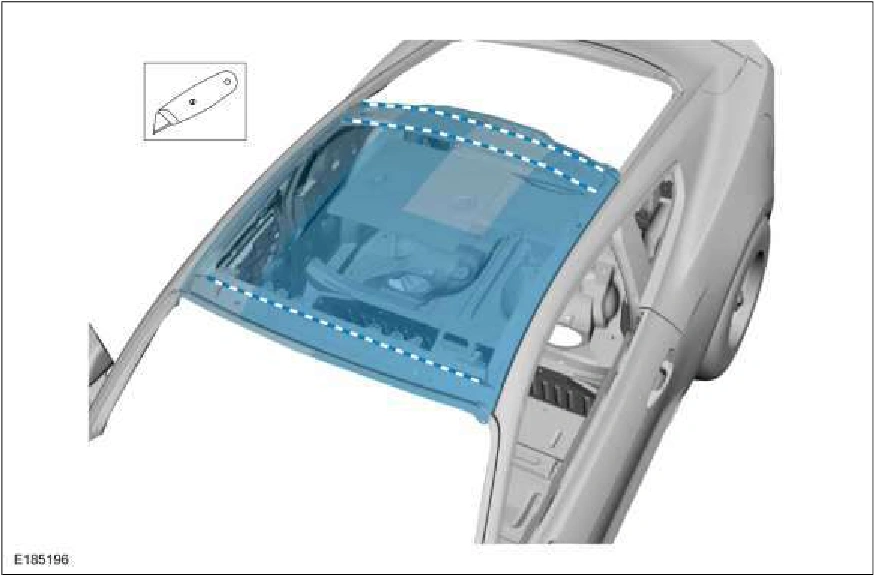

5. Using a spherical cutter or equivalent, cut the roof panel along the edge near the roof ditch flange and remove the roof panel. Use the General Equipment: Spherical Cutter

Source reference 2267
