Roof Panel — 2016 workshop reference 2270

Roof Panel — original illustration 1, reference 2270Original colors & callouts · Select to enlarge

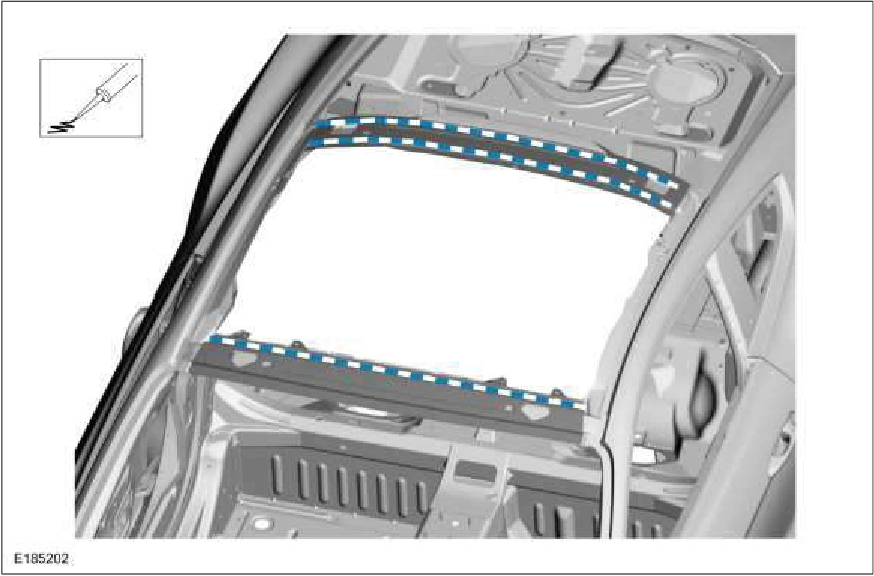

5. Apply NVH foam to the front and rear roof reinforcements. Material : Fusor® Flexible Foam Repair / 3M™ 08463, Fusor® 121

Roof Panel — original illustration 2, reference 2270Original colors & callouts · Select to enlarge

6. NOTE: Do not lift the panel from the body once installed. If the panel requires repositioning, slide the panel to correct alignment location.

NOTE: To assure complete bonding, check all locations for full adhesive contact. Add additional adhesive as necessary.

NOTE: Inspect the roof panel-to-roof reinforcement contact points for full contact. Fill any voids with additional NVH foam.

Install the roof panel, locate the roof panel to the reference marks and spot weld. Use the General Equipment: Resistance Spotwelding Equipment
