Roof Panel — 2016 workshop reference 2268

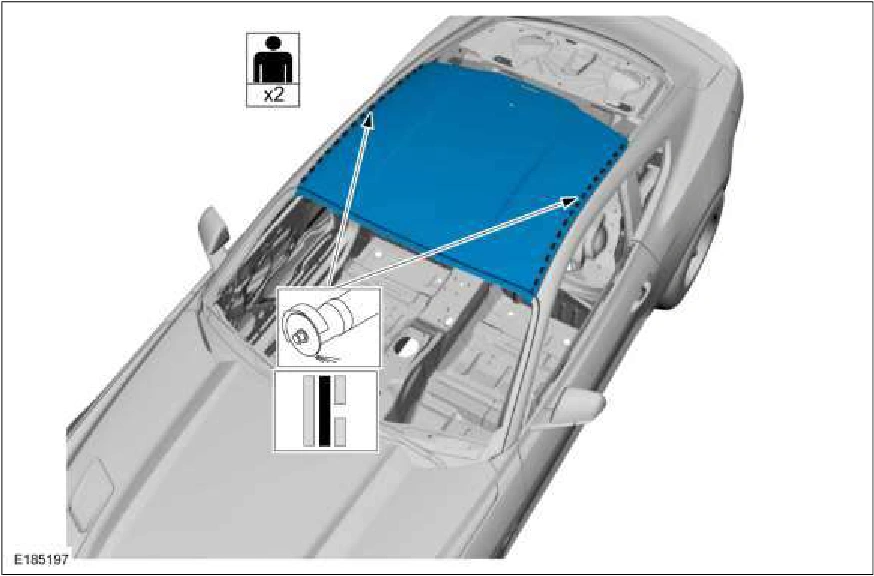

Roof Panel — original illustration 1, reference 2268Original colors & callouts · Select to enlarge

Installation

NOTICE: Adequately protect all glass, exterior finish and interior trim during entire repair procedure.

Step 1

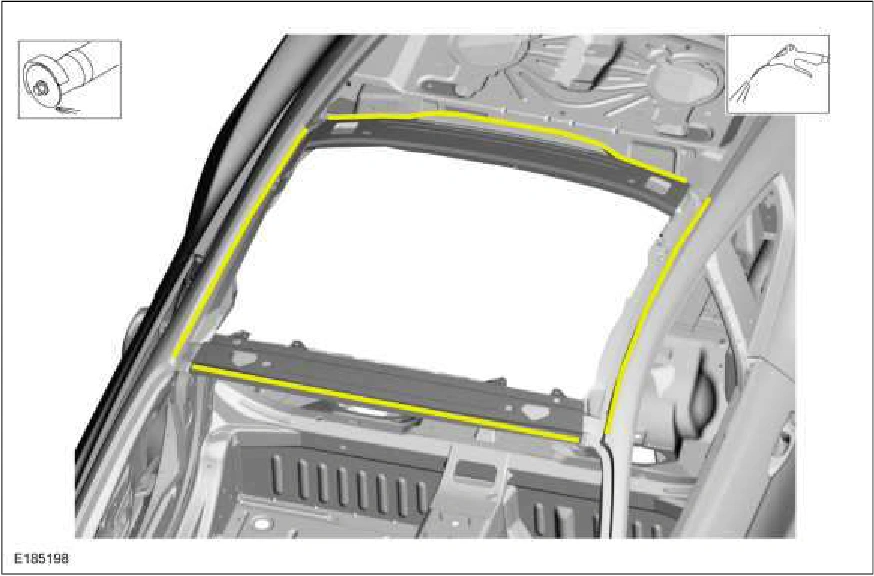

1. Remove any remaining roof flange material and level the weld nuggets. Use the General Equipment: Grinder

2. Clean the area and remove any remaining residue.

Roof Panel — original illustration 2, reference 2268Original colors & callouts · Select to enlarge

Step 2

1. Abrade the flange area of the replacement roof panel. Material : Metal Bonding Adhesive / TA-1, 3M™ 08115, Fusor® 108B

2. Clean the area and remove any remaining residue.
