Roof Panel — 2016 workshop reference 2269

Roof Panel — original illustration 1, reference 2269Original colors & callouts · Select to enlarge

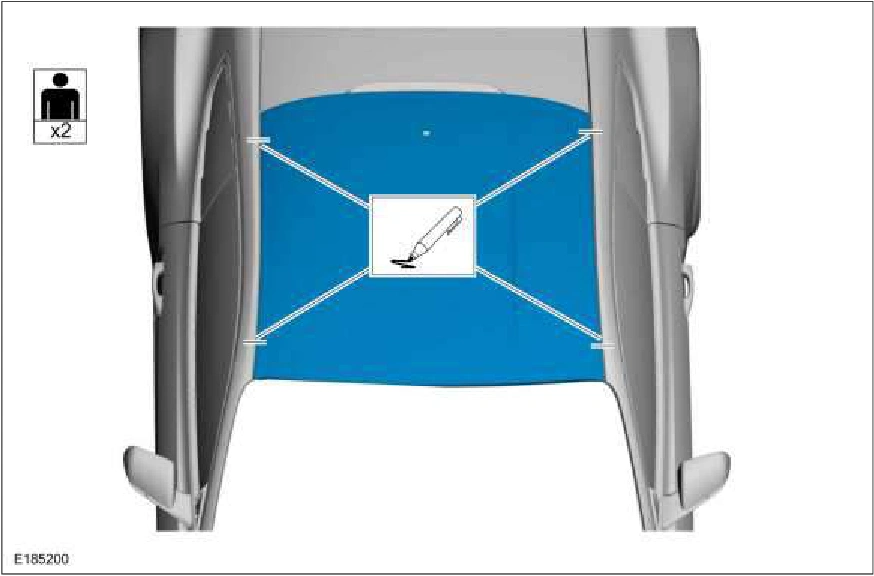

3. Locate and reference mark the replacement roof panel. Remove the roof panel after marking.

Roof Panel — original illustration 2, reference 2269Original colors & callouts · Select to enlarge

4. Apply a bead of adhesive to the roof rail flange. Material : Metal Bonding Adhesive / TA-1, 3M™ 08115, Fusor® 108B
