Roof Panel — 2016 workshop reference 2271

Use the General Equipment: Locking Pliers

Roof Panel — original illustration 1, reference 2271Original colors & callouts · Select to enlarge

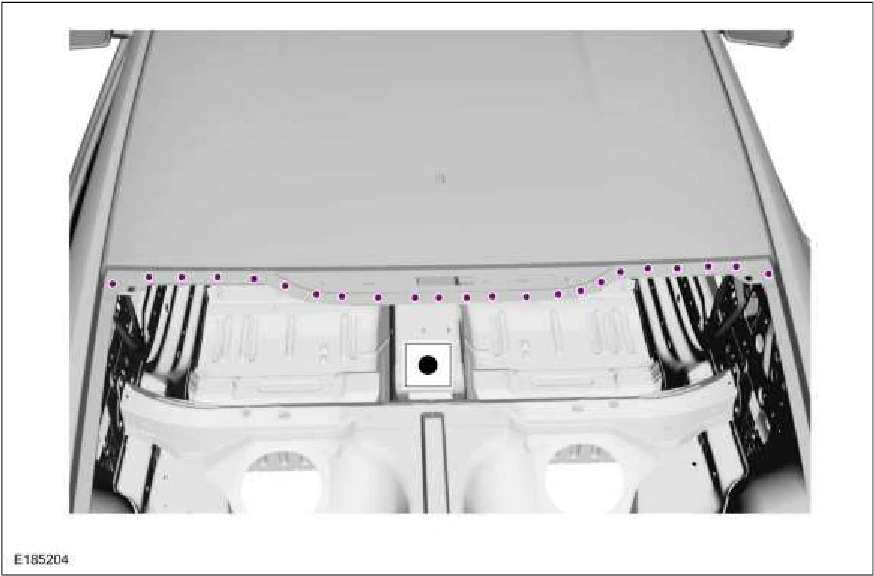

7. Spot weld the rear roof panel flange. Use the General Equipment: Resistance Spotwelding Equipment

Roof Panel — original illustration 2, reference 2271Original colors & callouts · Select to enlarge

8. Metal finish the repair area using typical metal finishing procedures.

9. Sealing work: All areas must be sealed to production level. Material : Seam Sealer / TA-2-B

10. Sand and prime the entire repair area with a Ford approved paint system.

11. Apply sealant to the roof ditch. Material : Roof Ditch Sealer / 3M™ 08307, Fusor® 122EZ
