A-Pillar Outer Panel Section and Reinforcement — 2016 workshop reference 2283

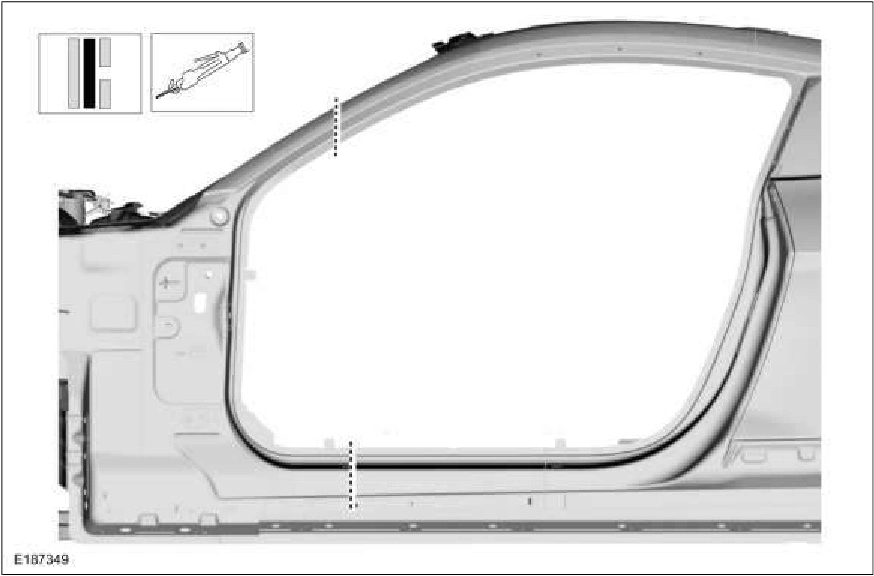

A-Pillar Outer Panel Section and Reinforcement — original illustration 1, reference 2283Original colors & callouts · Select to enlarge

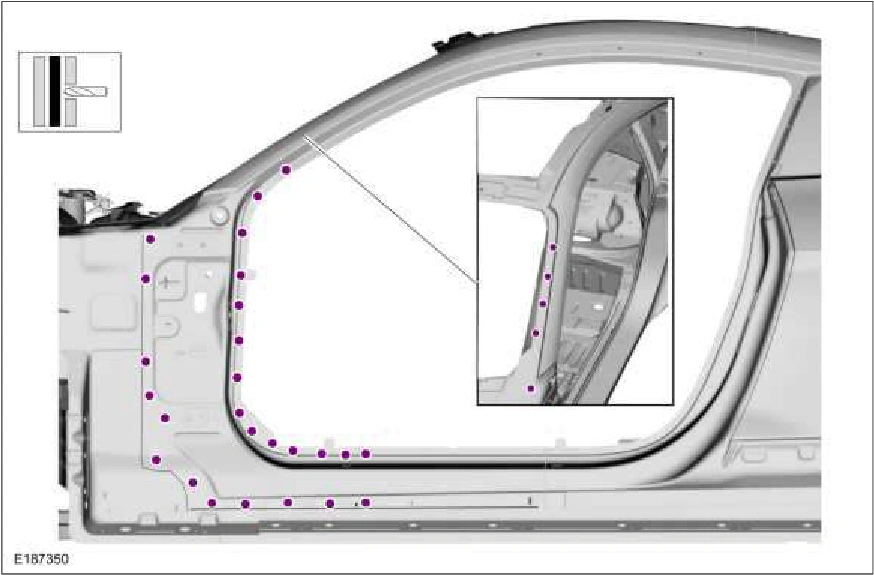

8. Drill out the spot welds. Use the General Equipment: Spot Weld Drill Bit

A-Pillar Outer Panel Section and Reinforcement — original illustration 2, reference 2283Original colors & callouts · Select to enlarge

9. NOTE: Do not heat the area above 170° C.

Using a hot air gun, heat the area to aid in softening the NVH foam and remove the panel. Use the General Equipment: Hot Air Gun
