A-Pillar Outer Panel Section and Reinforcement — 2016 workshop reference 2285

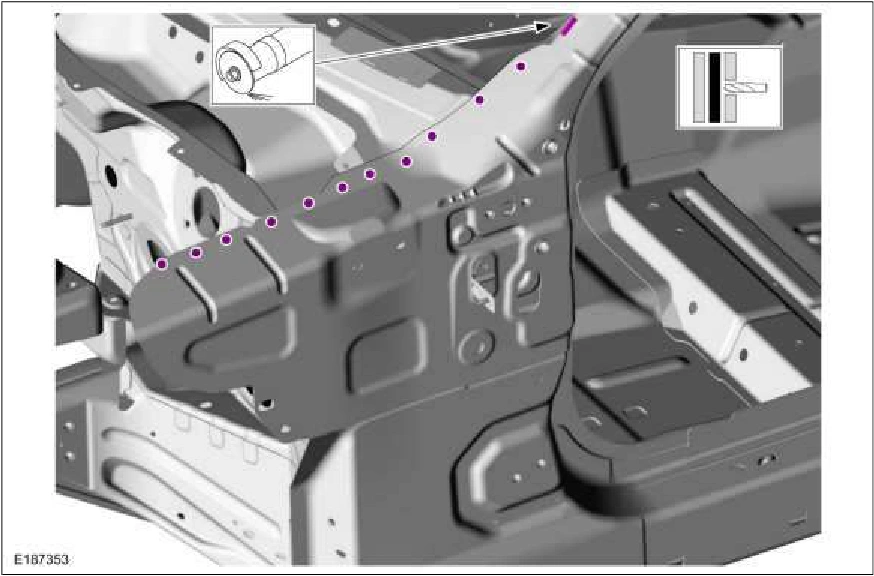

A-Pillar Outer Panel Section and Reinforcement — original illustration 1, reference 2285Original colors & callouts · Select to enlarge

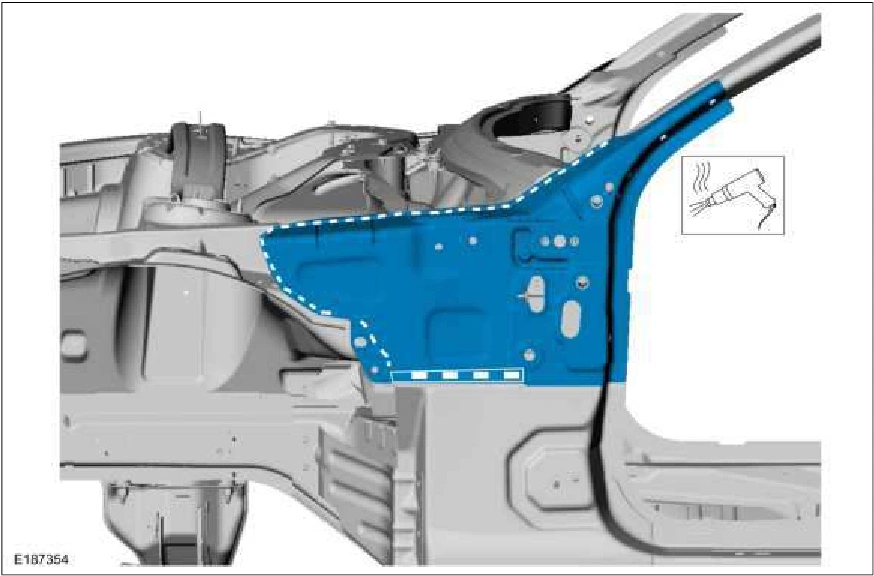

12. NOTE: Do not heat the area above 170° C.

Using a hot air gun, heat the area to aid in softening the NVH foam and remove the upper A-pillar reinforcement. Use the General Equipment: Hot Air Gun

A-Pillar Outer Panel Section and Reinforcement — original illustration 2, reference 2285Original colors & callouts · Select to enlarge

13. Drill out the welds on lower A-pillar reinforcement. Use the General Equipment: Spot Weld Drill Bit
