A-Pillar Outer Panel Section and Reinforcement

501-29 Side Panel Sheet Metal Repairs

2016 MustangReference 2,288 / 6,619HTML edition

← Chapter contents Procedure contents

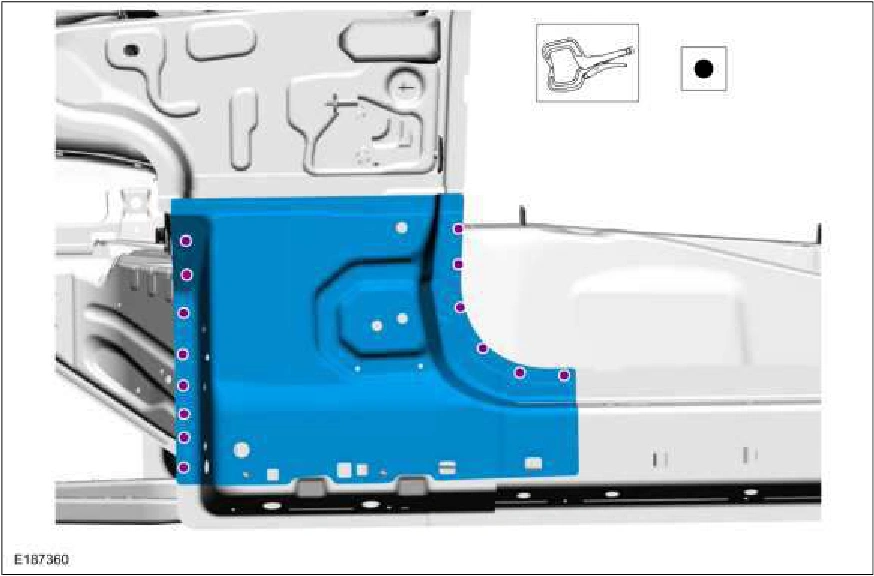

A-Pillar Outer Panel Section and Reinforcement — original illustration 1, reference 2288Original colors & callouts · Select to enlarge

4. Plug weld the A-pillar lower reinforcement. Use the General Equipment: MIG/MAG Welding Equipment

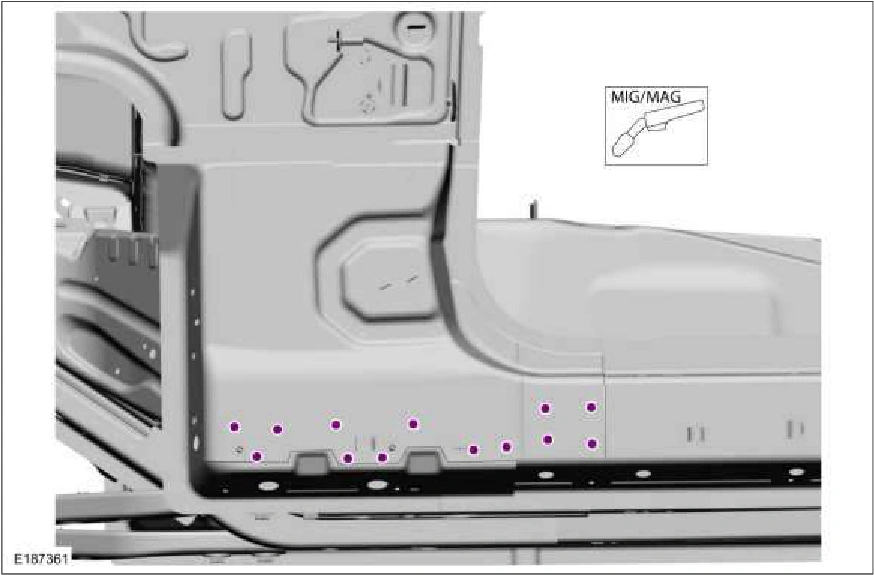

A-Pillar Outer Panel Section and Reinforcement — original illustration 2, reference 2288Original colors & callouts · Select to enlarge

5. Drill plug weld holes in the replacement A-pillar upper reinforcement.

Source reference 2288
