A-Pillar Outer Panel Section and Reinforcement — 2016 workshop reference 2287

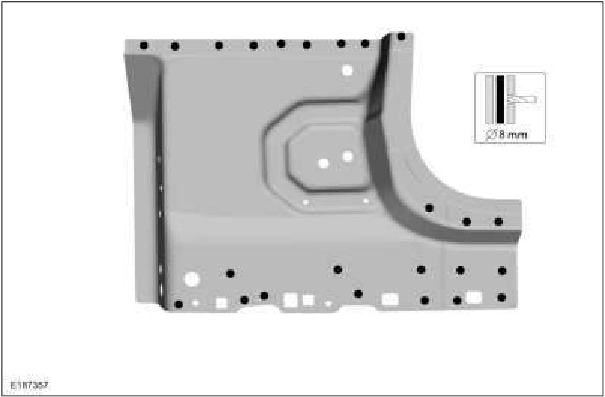

A-Pillar Outer Panel Section and Reinforcement — original illustration 1, reference 2287Original colors & callouts · Select to enlarge

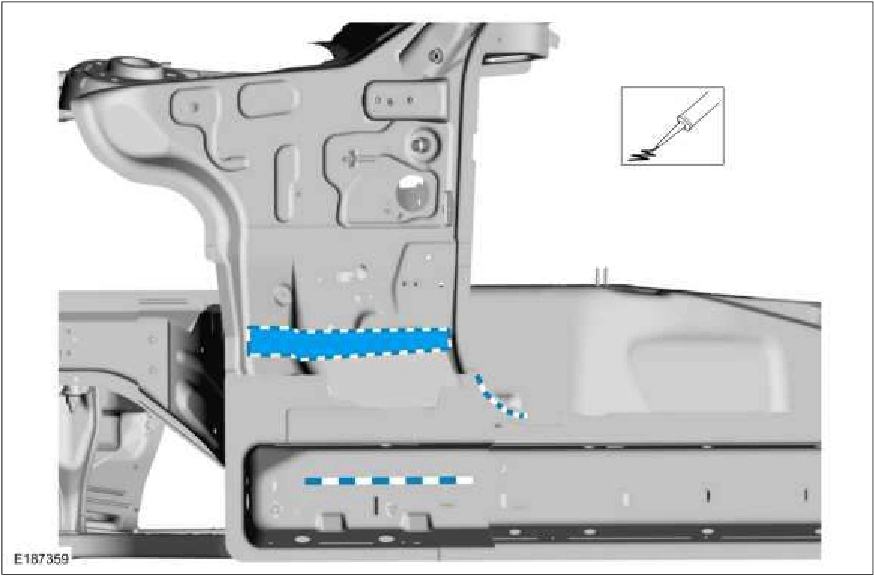

2. Apply adhesive and NVH expanding foam as indicated. Material : Metal Bonding Adhesive / TA-1, 3M™ 08115, Fusor® 108B Material : Fusor® Flexible Foam Repair / 3M™ 08463, Fusor® 121

A-Pillar Outer Panel Section and Reinforcement — original illustration 2, reference 2287Original colors & callouts · Select to enlarge

3. Install and spot weld the A-pillar lower reinforcement. Use the General Equipment: Locking Pliers Use the General Equipment: Resistance Spotwelding Equipment

Source reference 2287
