A-Pillar Outer Panel Section and Reinforcement — 2016 workshop reference 2290

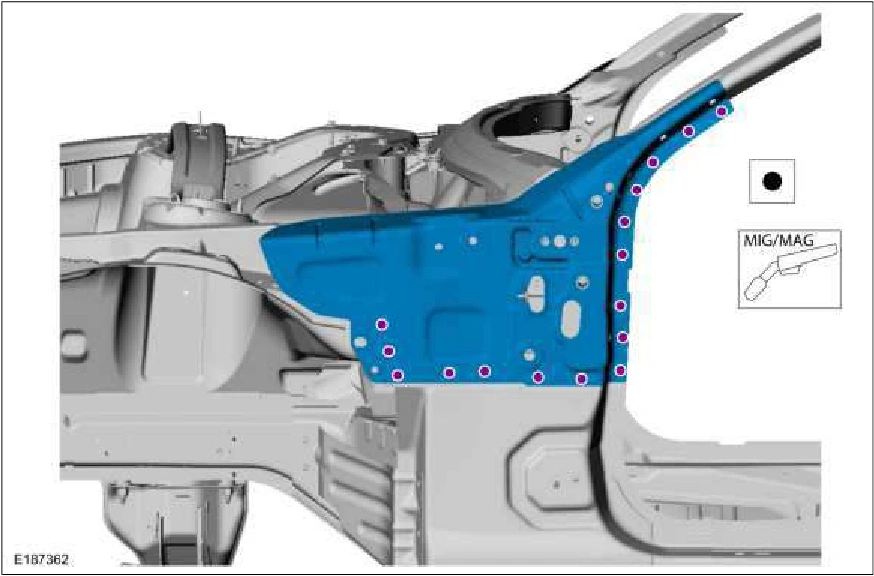

A-Pillar Outer Panel Section and Reinforcement — original illustration 1, reference 2290Original colors & callouts · Select to enlarge

8. Complete welding the A-pillar upper reinforcement. Use the General Equipment: MIG/MAG Welding Equipment

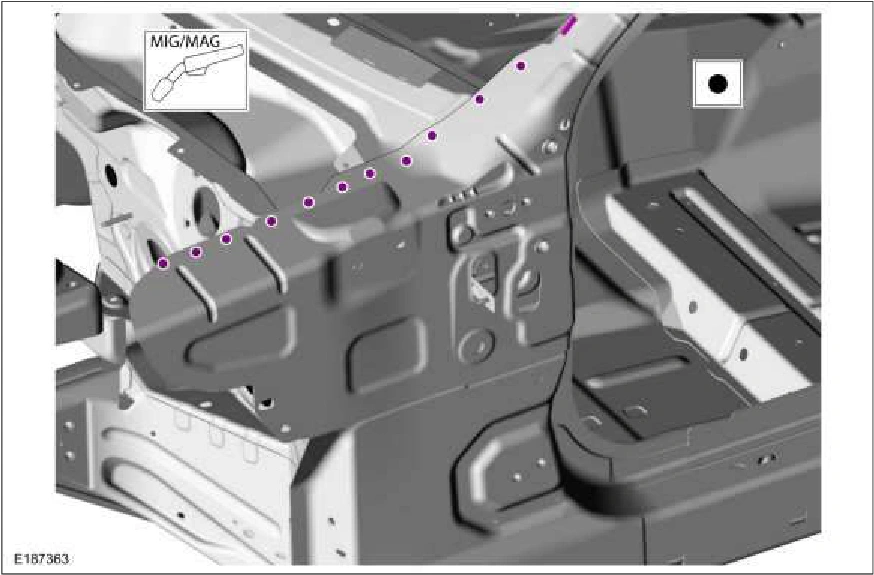

A-Pillar Outer Panel Section and Reinforcement — original illustration 2, reference 2290Original colors & callouts · Select to enlarge

9. Cut a section from the replacement panel and drill holes for plug welding. Use the General Equipment: 8 mm Drill Bit Use the General Equipment: Air Body Saw
