A-Pillar Outer Panel Section and Reinforcement — 2016 workshop reference 2291

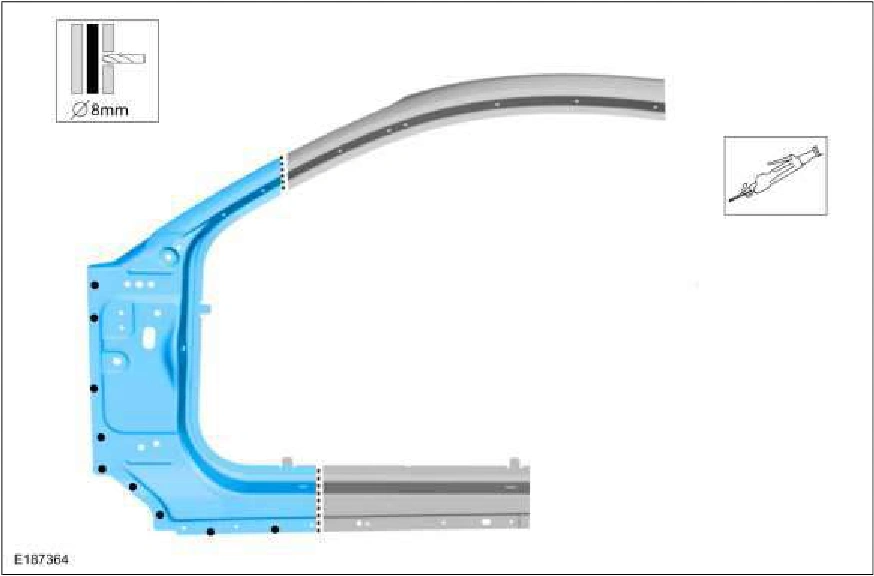

A-Pillar Outer Panel Section and Reinforcement — original illustration 1, reference 2291Original colors & callouts · Select to enlarge

10. Install the replacement panel and weld. Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Locking Pliers

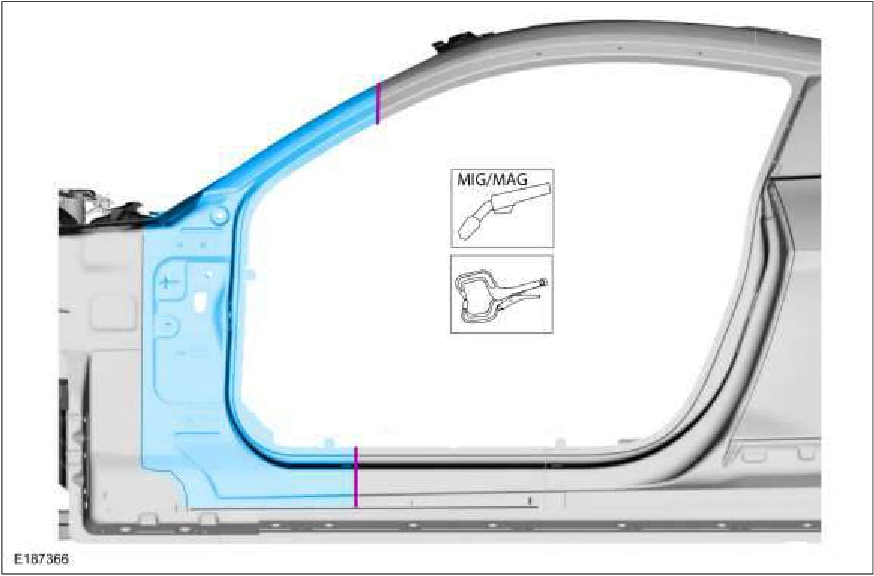

A-Pillar Outer Panel Section and Reinforcement — original illustration 2, reference 2291Original colors & callouts · Select to enlarge

11. Spot weld the A-pillar panel. Use the General Equipment: Resistance Spotwelding Equipment Use the General Equipment: Locking Pliers
