A-Pillar Outer Panel Section and Reinforcement — 2016 workshop reference 2292

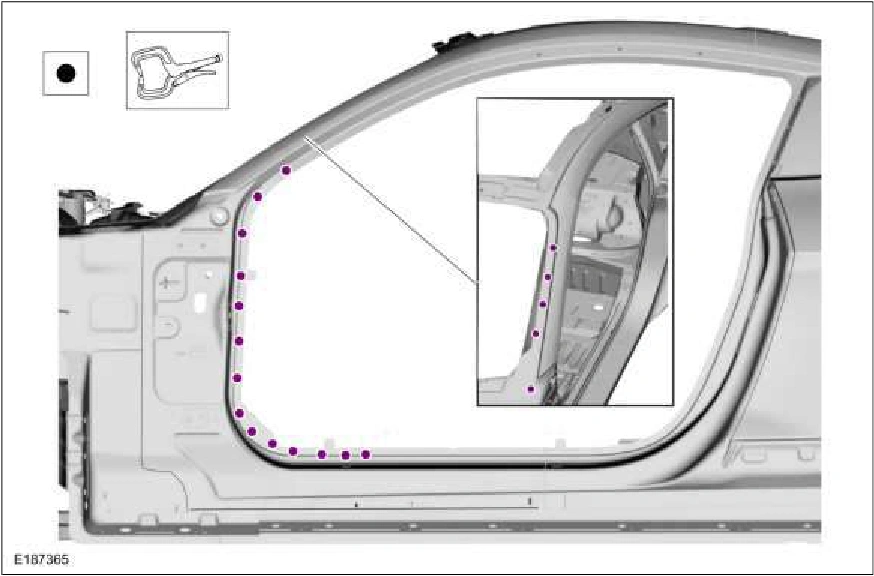

A-Pillar Outer Panel Section and Reinforcement — original illustration 1, reference 2292Original colors & callouts · Select to enlarge

12. MIG plug weld the A-pillar panel. Use the General Equipment: MIG/MAG Welding Equipment

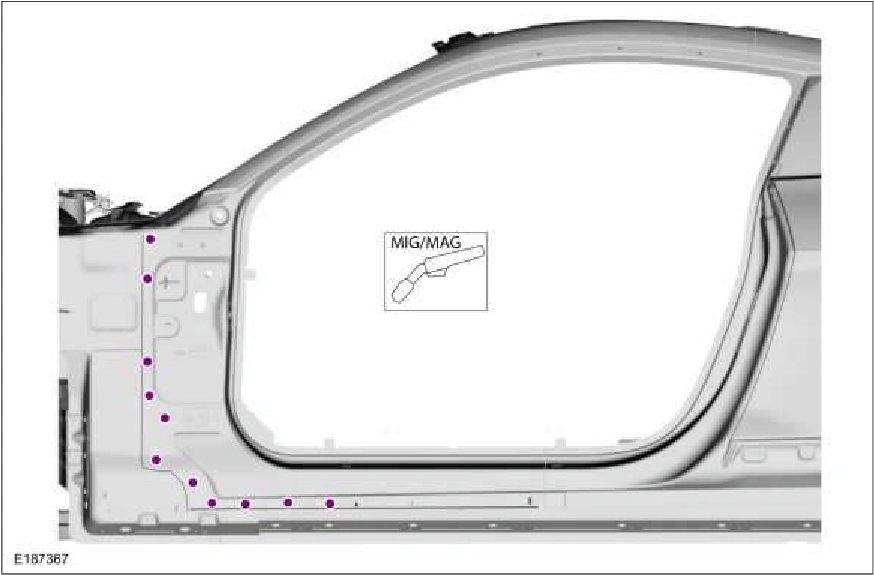

A-Pillar Outer Panel Section and Reinforcement — original illustration 2, reference 2292Original colors & callouts · Select to enlarge

13. Metal finish the repair areas using typical metal finishing techniques.

14. Apply a Ford approved primer to the repair area.

15. Sealing work: All areas must be sealed to production level. Material : Seam Sealer / TA-2-B

16. Refinish using a Ford approved paint system.

17. Restore corrosion protection. Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).
