A-Pillar Outer Panel Section and Reinforcement — 2016 workshop reference 2289

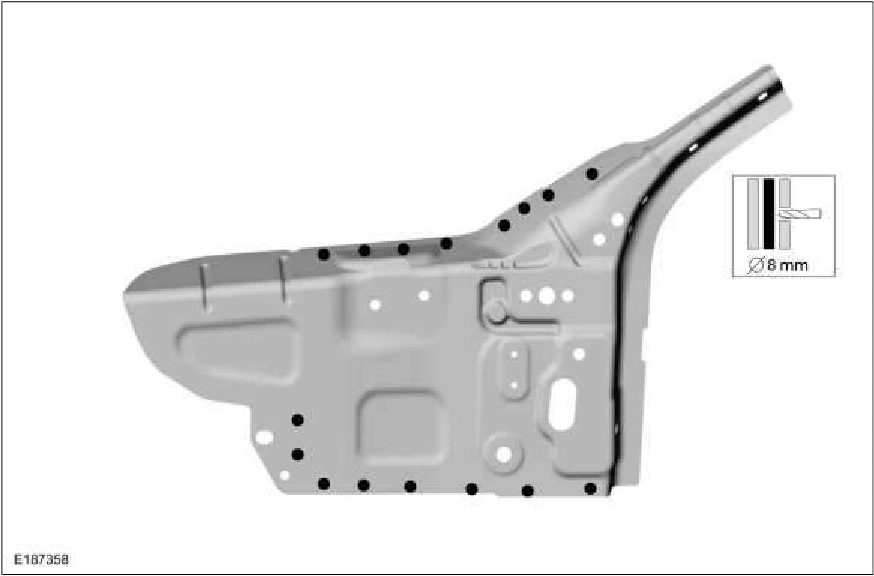

A-Pillar Outer Panel Section and Reinforcement — original illustration 1, reference 2289Original colors & callouts · Select to enlarge

6. Apply adhesive to the upper flange of the A-pillar lower reinforcement. Material : Metal Bonding Adhesive / TA-1, 3M™ 08115, Fusor® 108B

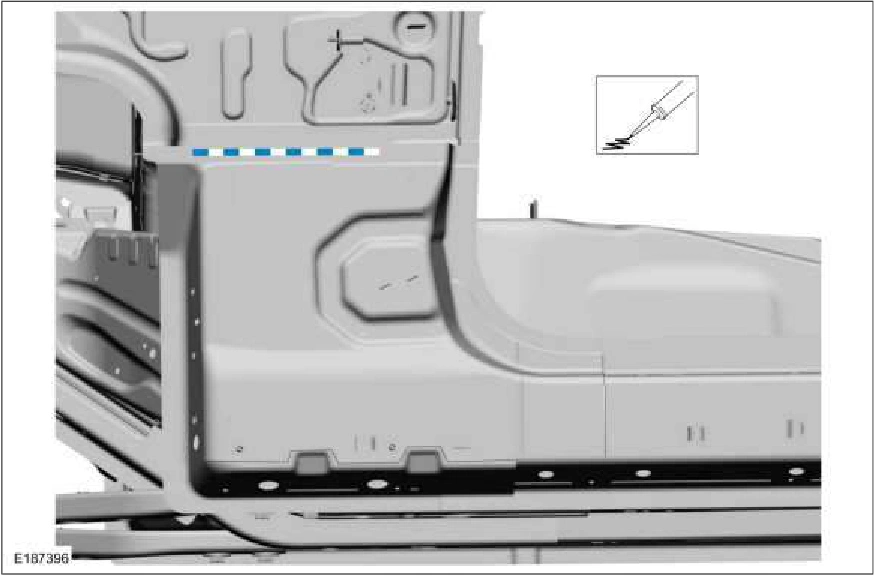

A-Pillar Outer Panel Section and Reinforcement — original illustration 2, reference 2289Original colors & callouts · Select to enlarge

7. Install and weld the A-pillar upper reinforcement. Use the General Equipment: Resistance Spotwelding Equipment Use the General Equipment: MIG/MAG Welding Equipment
