A-Pillar Outer Panel Section and Reinforcement — 2016 workshop reference 2286

A-Pillar Outer Panel Section and Reinforcement — original illustration 1, reference 2286Original colors & callouts · Select to enlarge

14. NOTE: Do not heat the area above 170° C.

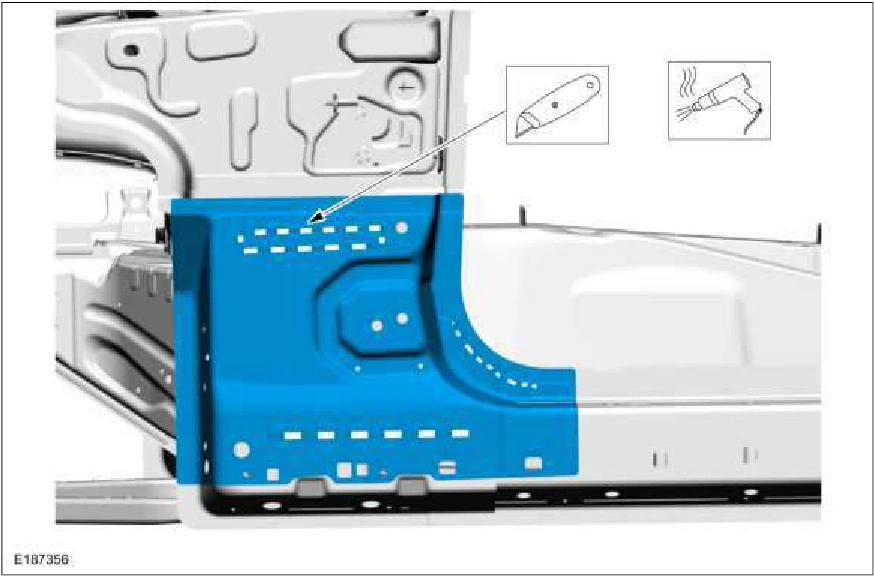

Using a hot air gun, heat the area to aid in softening the NVH foam and remove the lower A-pillar reinforcement. Use the General Equipment: Hot Air Gun Use the General Equipment: Knife

A-Pillar Outer Panel Section and Reinforcement — original illustration 2, reference 2286Original colors & callouts · Select to enlarge

Installation

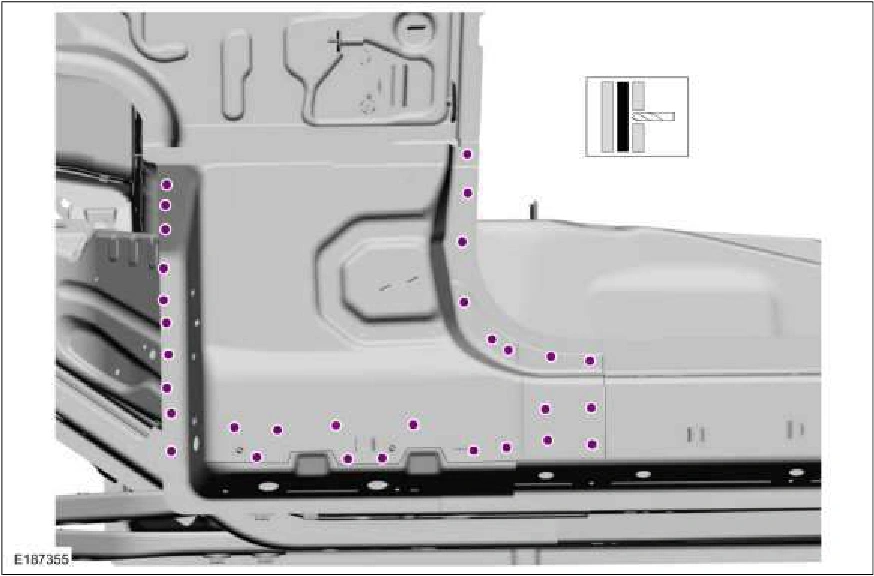

1. Drill plug weld holes in the replacement A-pillar lower reinforcement. Use the General Equipment: 8 mm Drill Bit

Source reference 2286
