2016 workshop · Body & Paint

A-Pillar Outer Panel Section and Reinforcement

501-29 Side Panel Sheet Metal Repairs

2016 MustangReference 2,284 / 6,619HTML edition
← Chapter contentsProcedure contents

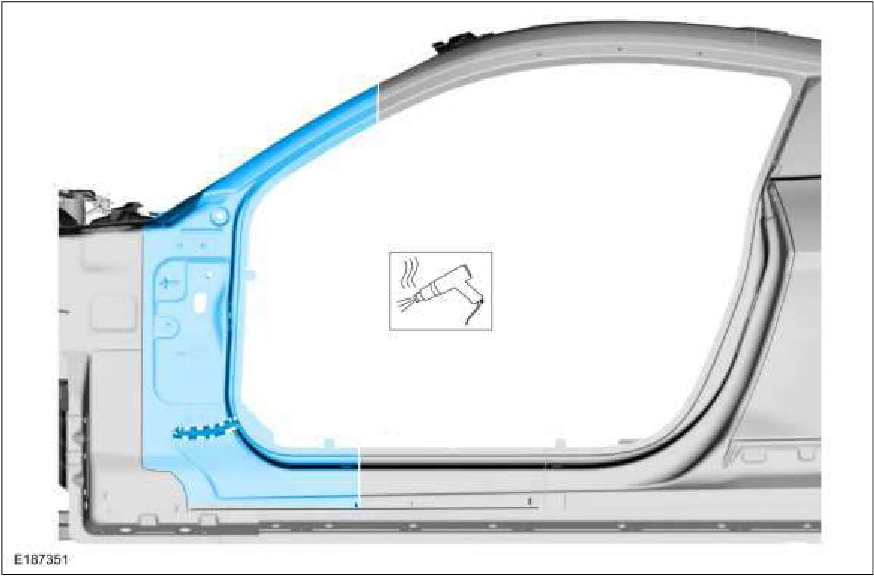

A-Pillar Outer Panel Section and Reinforcement — original illustration 1, reference 2284Original colors & callouts · Select to enlarge

10. Drill out the spot welds from the upper A-pillar reinforcement. Use the General Equipment: Spot Weld Drill Bit

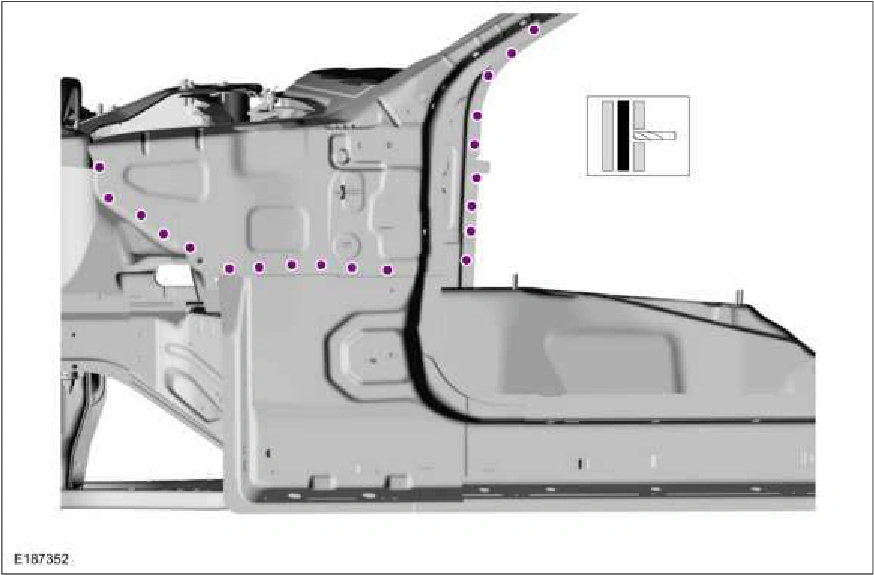

A-Pillar Outer Panel Section and Reinforcement — original illustration 2, reference 2284Original colors & callouts · Select to enlarge

11. Drill out the spot welds and grind the seam welds. Use the General Equipment: Spot Weld Drill Bit Use the General Equipment: Grinder
