B-Pillar and Reinforcement - Coupe

501-29 Side Panel Sheet Metal Repairs

2016 MustangReference 2,295 / 6,619HTML edition

← Chapter contents Procedure contents

B-Pillar and Reinforcement - Coupe — original illustration 1, reference 2295Original colors & callouts · Select to enlarge

5. Remove the NVH foam at the base of the B-pillar.

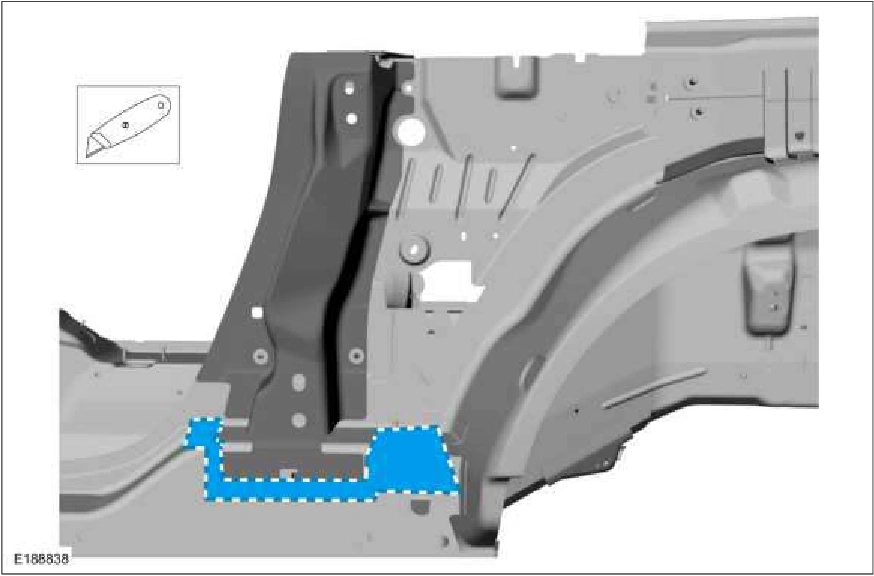

B-Pillar and Reinforcement - Coupe — original illustration 2, reference 2295Original colors & callouts · Select to enlarge

6. Drill out the spot welds on the B-pillar panel. Use the General Equipment: Spot Weld Drill Bit
