B-Pillar and Reinforcement - Coupe — 2016 workshop reference 2297

B-Pillar and Reinforcement - Coupe — original illustration 1, reference 2297Original colors & callouts · Select to enlarge

9. Drill out the spot welds on the B-pillar panel at the rear roof reinforcement flange. Use the General Equipment: Spot Weld Drill Bit

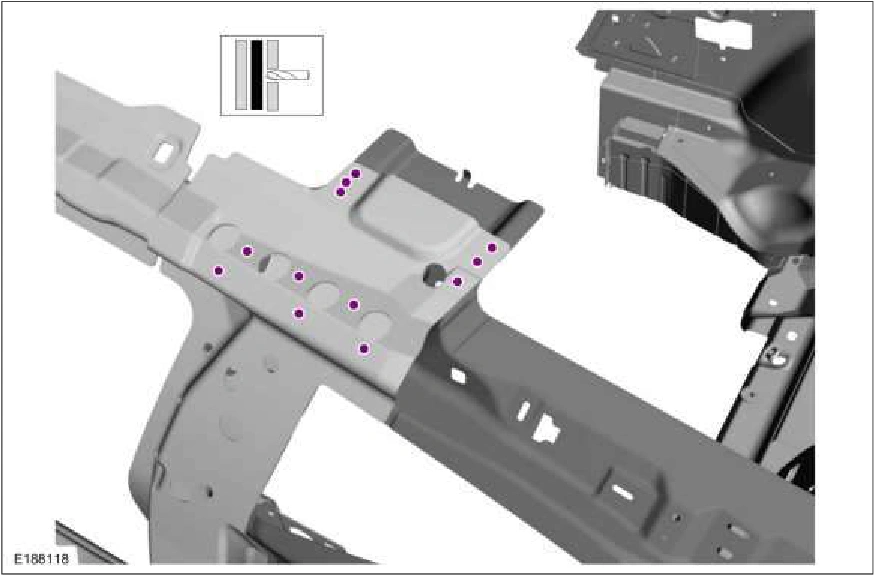

B-Pillar and Reinforcement - Coupe — original illustration 2, reference 2297Original colors & callouts · Select to enlarge

10. Remove the B-pillar assembly.
