B-Pillar and Reinforcement - Coupe — 2016 workshop reference 2300

B-Pillar and Reinforcement - Coupe — original illustration 1, reference 2300Original colors & callouts · Select to enlarge

3. Install the B-pillar assembly and spot weld. Use the General Equipment: Locking Pliers Use the General Equipment: Resistance Spotwelding Equipment

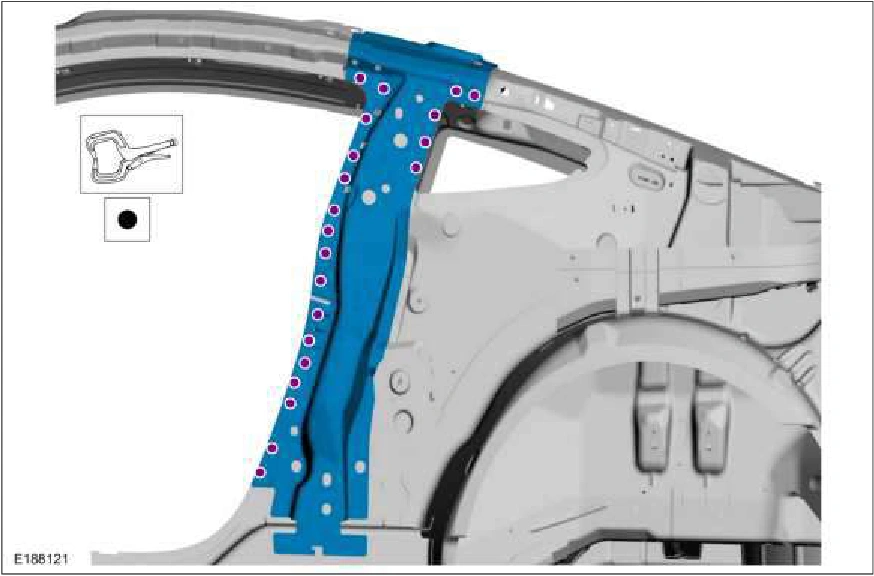

B-Pillar and Reinforcement - Coupe — original illustration 2, reference 2300Original colors & callouts · Select to enlarge

4. Weld the B-pillar at the rear roof reinforcement flange. Use the General Equipment: Locking Pliers Use the General Equipment: MIG/MAG Welding Equipment Use the General Equipment: Resistance Spotwelding Equipment

Source reference 2300
