B-Pillar and Reinforcement - Coupe — 2016 workshop reference 2299

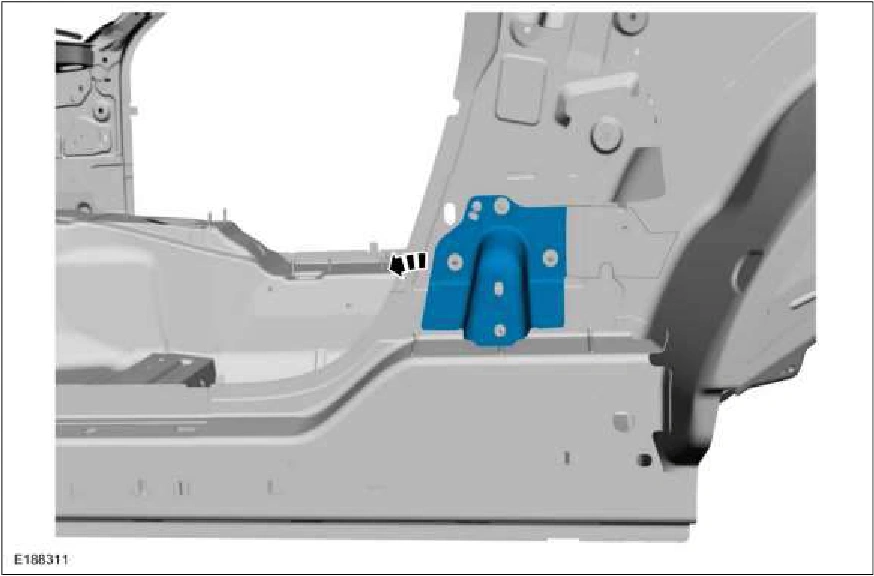

B-Pillar and Reinforcement - Coupe — original illustration 1, reference 2299Original colors & callouts · Select to enlarge

Installation

NOTE: LH side shown, RH side similar.

1. Drill holes for plug welding in the replacement panel. Use the General Equipment: 8 mm Drill Bit

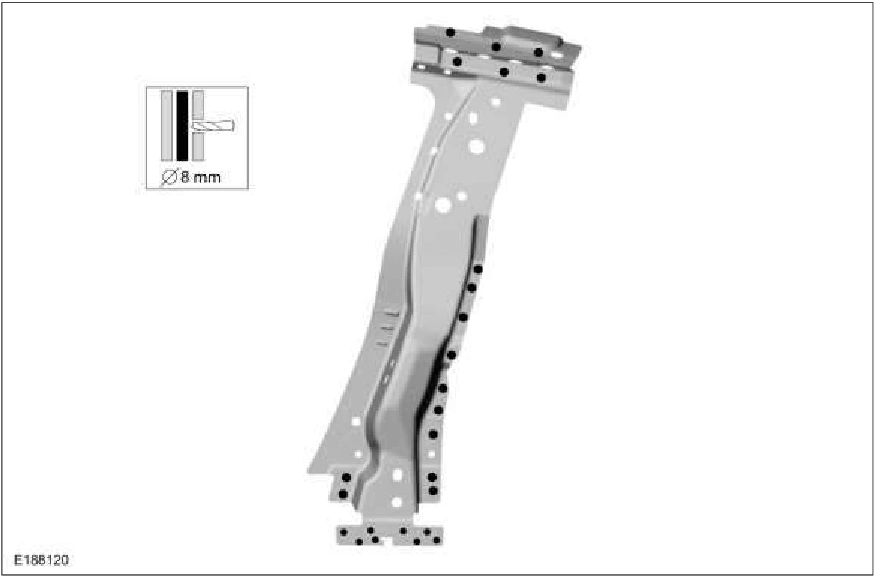

B-Pillar and Reinforcement - Coupe — original illustration 2, reference 2299Original colors & callouts · Select to enlarge

2. Install the inner reinforcement and spot weld. Use the General Equipment: Locking Pliers Use the General Equipment: Resistance Spotwelding Equipment

Source reference 2299
