B-Pillar and Reinforcement - Coupe — 2016 workshop reference 2301

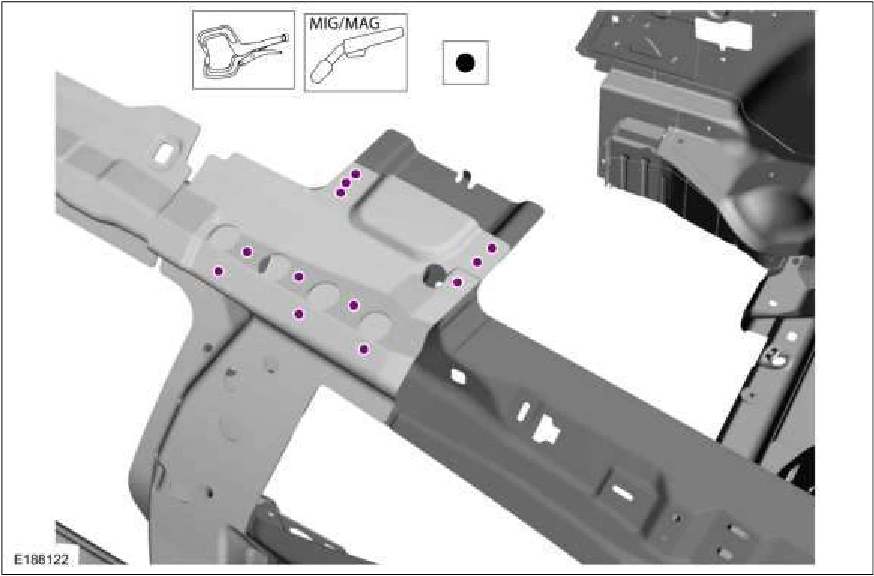

B-Pillar and Reinforcement - Coupe — original illustration 1, reference 2301Original colors & callouts · Select to enlarge

5. MIG weld the B-pillar panel. Use the General Equipment: MIG/MAG Welding Equipment

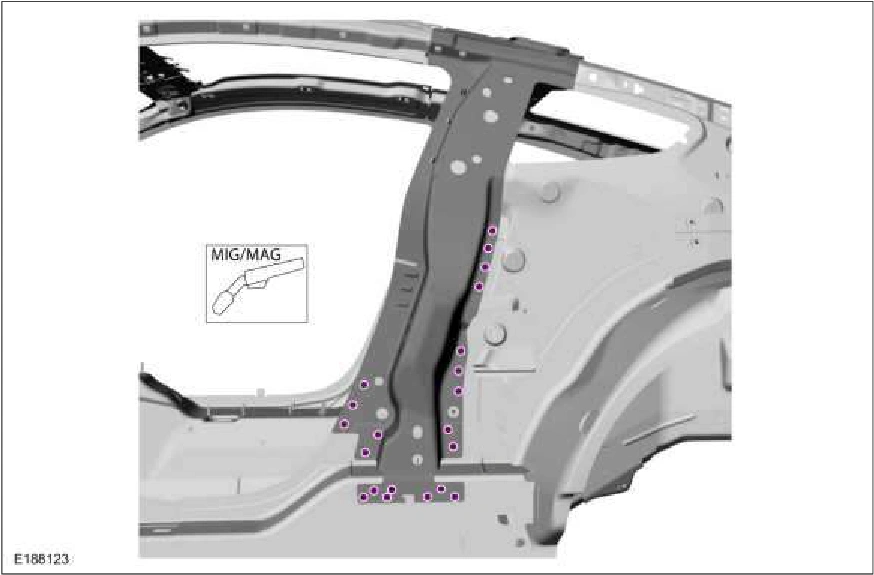

B-Pillar and Reinforcement - Coupe — original illustration 2, reference 2301Original colors & callouts · Select to enlarge

6. Install the rear roof reinforcement panel and weld on both sides. Use the General Equipment: Resistance Spotwelding Equipment Use the General Equipment: Locking Pliers
