B-Pillar and Reinforcement - Coupe

501-29 Side Panel Sheet Metal Repairs

2016 MustangReference 2,302 / 6,619HTML edition

← Chapter contents Procedure contents

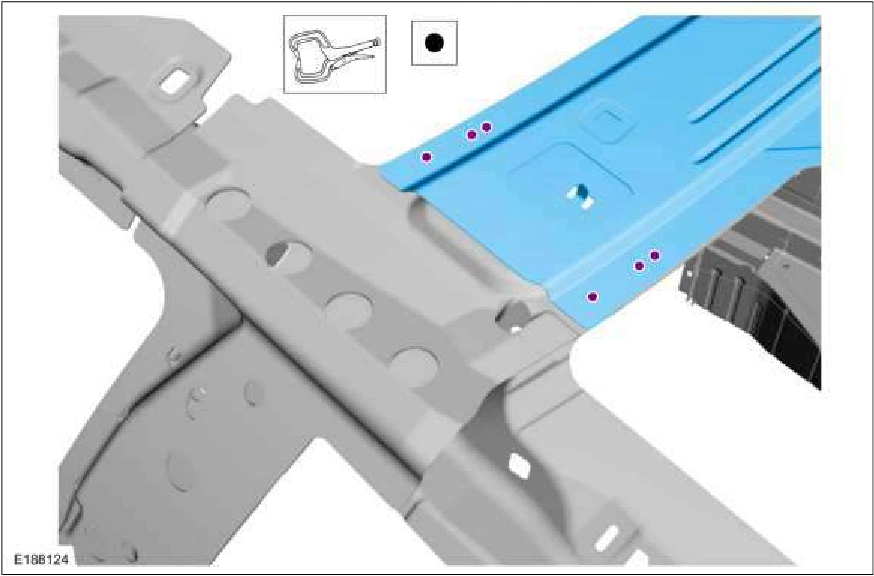

B-Pillar and Reinforcement - Coupe — original illustration 1, reference 2302Original colors & callouts · Select to enlarge

7. Apply NVH expanding foam. Material : Fusor® Flexible Foam Repair / 3M™ 08463, Fusor® 121

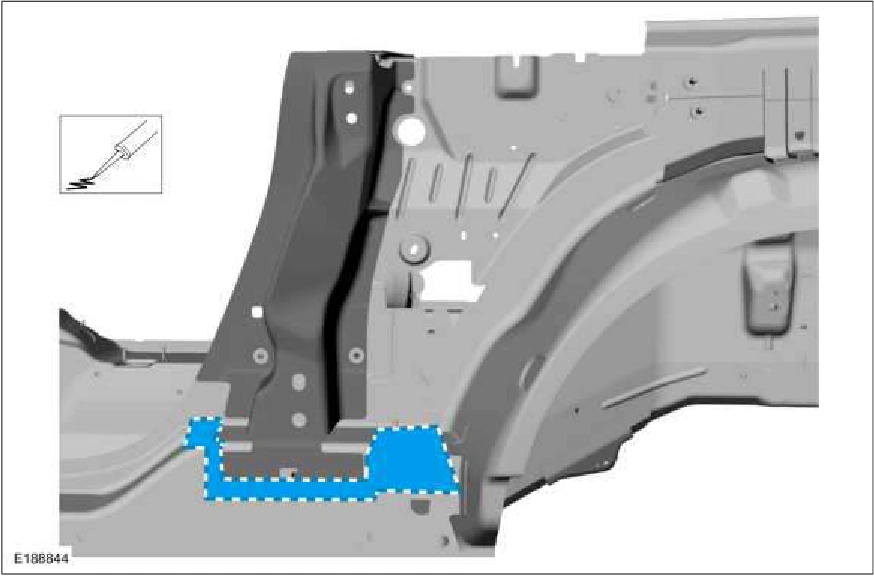

B-Pillar and Reinforcement - Coupe — original illustration 2, reference 2302Original colors & callouts · Select to enlarge

8. Install the rear floor crossmember bolts. Torque : 22 lb.ft (30 Nm)

Source reference 2302
