B-Pillar and Reinforcement - Convertible

501-29 Side Panel Sheet Metal Repairs

2016 MustangReference 2,305 / 6,619HTML edition

← Chapter contents Procedure contents

B-Pillar and Reinforcement - Convertible — original illustration 1, reference 2305Original colors & callouts · Select to enlarge

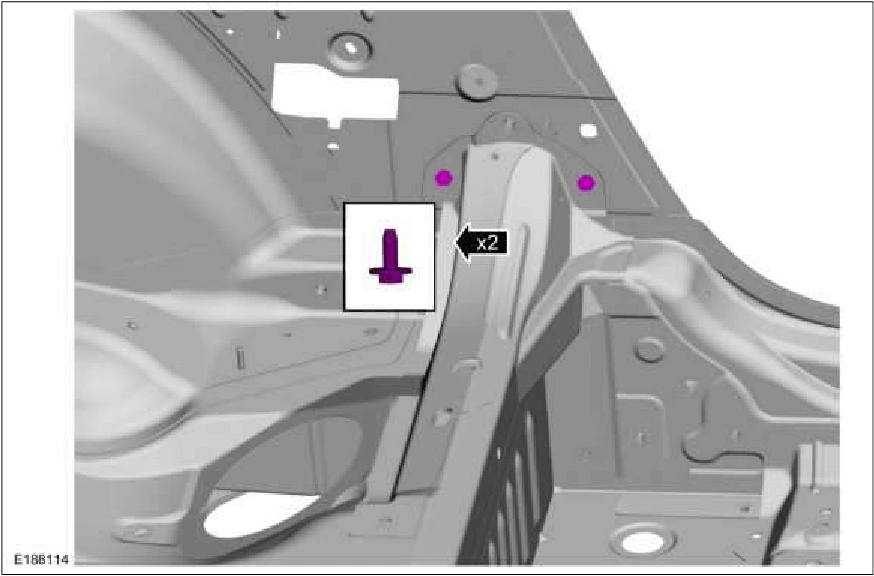

5. Remove the NVH foam at the base of the B-pillar. Use the General Equipment: Air Body Saw

B-Pillar and Reinforcement - Convertible — original illustration 2, reference 2305Original colors & callouts · Select to enlarge

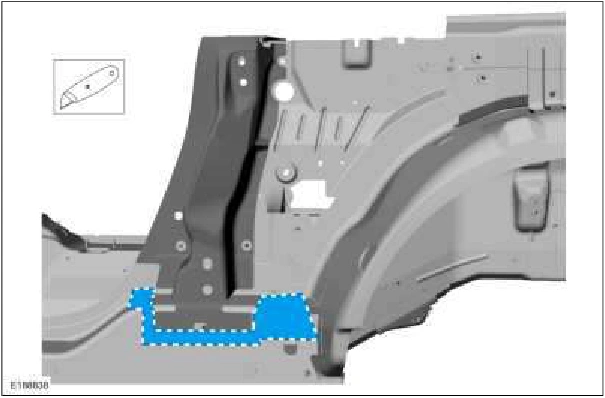

6. Drill out the spot welds. Use the General Equipment: Spot Weld Drill Bit

Source reference 2305
