2016 workshop · Body & Paint

B-Pillar and Reinforcement - Convertible

501-29 Side Panel Sheet Metal Repairs

2016 MustangReference 2,306 / 6,619HTML edition

← Chapter contents Procedure contents

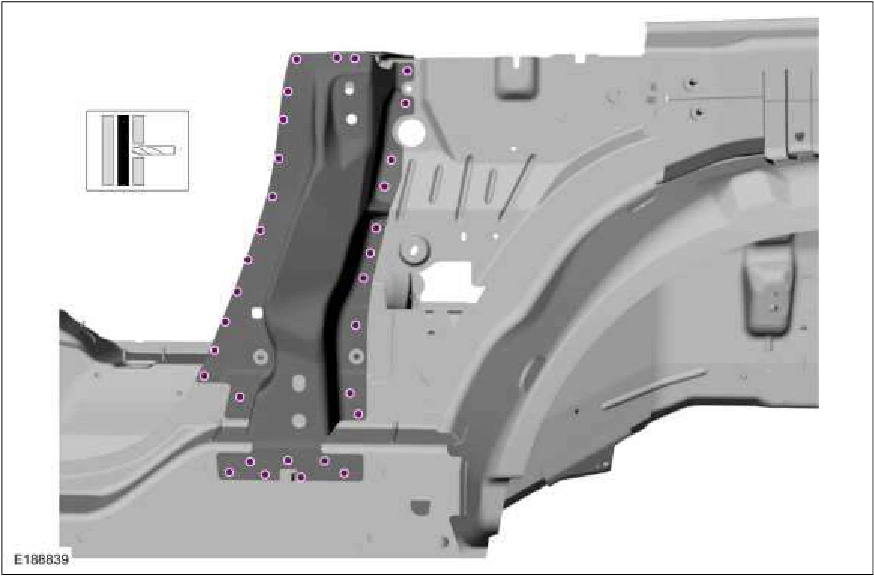

B-Pillar and Reinforcement - Convertible — original illustration 1, reference 2306Original colors & callouts · Select to enlarge

7. Remove the B-pillar assembly.

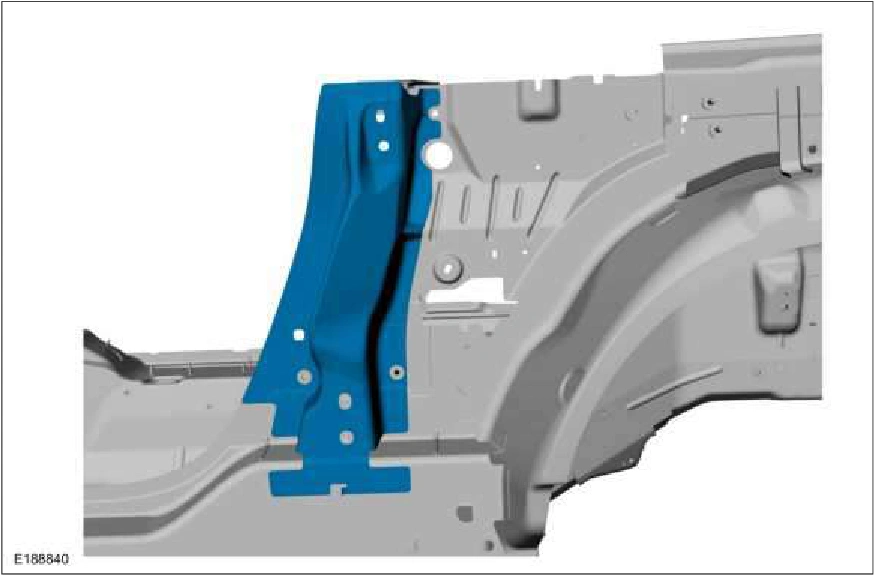

B-Pillar and Reinforcement - Convertible — original illustration 2, reference 2306Original colors & callouts · Select to enlarge

8. Drill out the spot welds. Use the General Equipment: Spot Weld Drill Bit

Source reference 2306
