2016 workshop · Body & Paint

B-Pillar and Reinforcement - Convertible

501-29 Side Panel Sheet Metal Repairs

2016 MustangReference 2,307 / 6,619HTML edition

← Chapter contents Procedure contents

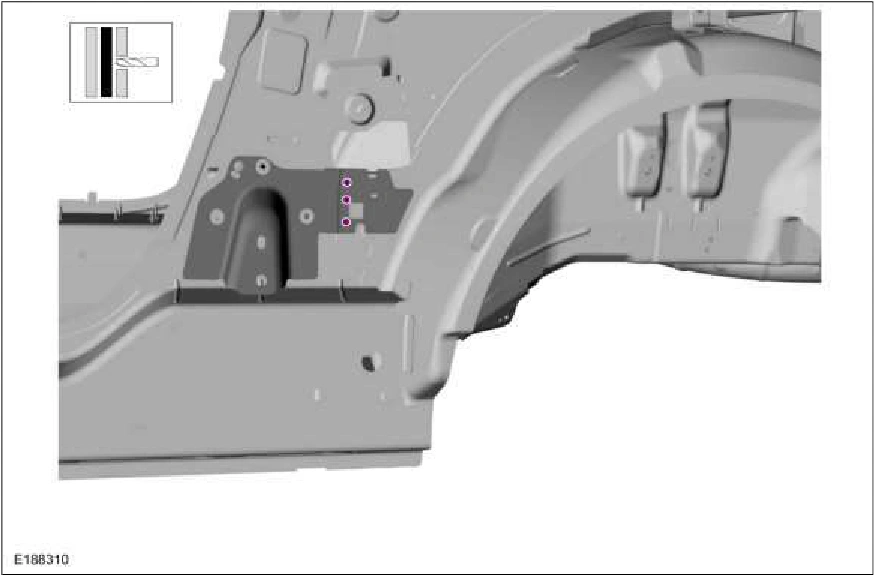

B-Pillar and Reinforcement - Convertible — original illustration 1, reference 2307Original colors & callouts · Select to enlarge

9. Remove the inner reinforcement.

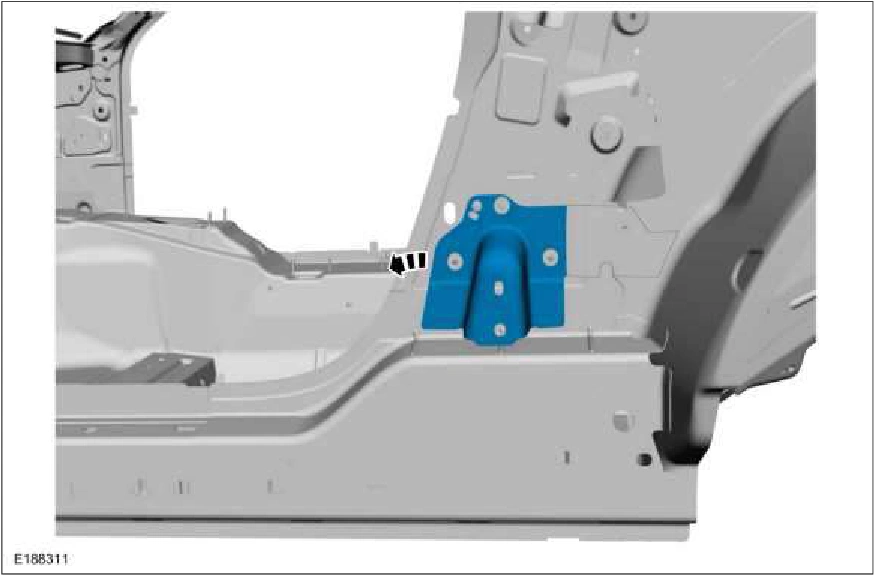

B-Pillar and Reinforcement - Convertible — original illustration 2, reference 2307Original colors & callouts · Select to enlarge

Installation

NOTE: LH side shown, RH side similar.

1. Drill holes for plug welding in the replacement panel. Use the General Equipment: 8 mm Drill Bit

Source reference 2307
