B-Pillar and Reinforcement - Convertible — 2016 workshop reference 2308

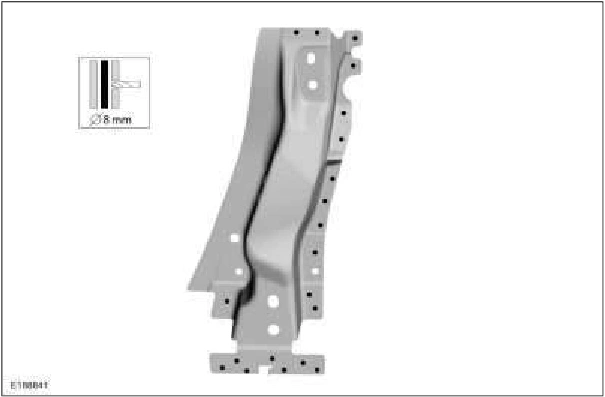

B-Pillar and Reinforcement - Convertible — original illustration 1, reference 2308Original colors & callouts · Select to enlarge

2. Install the inner reinforcement and resistance spot weld. Use the General Equipment: Locking Pliers Use the General Equipment: Resistance Spotwelding Equipment

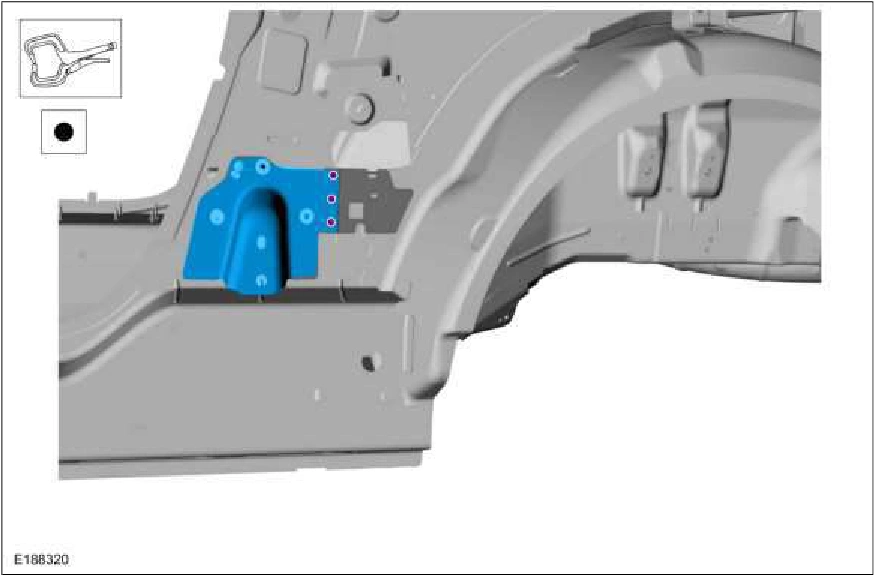

B-Pillar and Reinforcement - Convertible — original illustration 2, reference 2308Original colors & callouts · Select to enlarge

3. Install the B-pillar assembly and resistance spot weld. Use the General Equipment: Resistance Spotwelding Equipment Use the General Equipment: Locking Pliers

Source reference 2308

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
