B-Pillar and Reinforcement - Convertible

501-29 Side Panel Sheet Metal Repairs

2016 MustangReference 2,309 / 6,619HTML edition

← Chapter contents Procedure contents

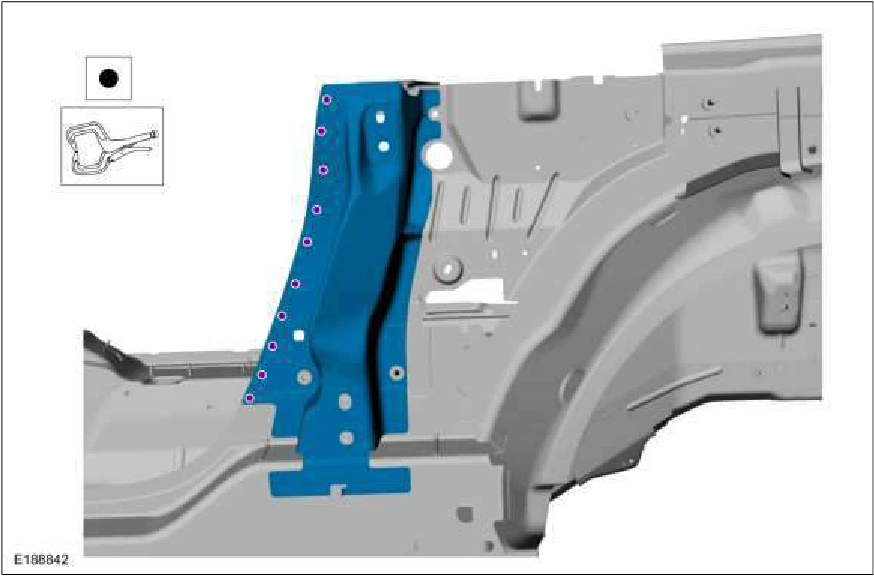

B-Pillar and Reinforcement - Convertible — original illustration 1, reference 2309Original colors & callouts · Select to enlarge

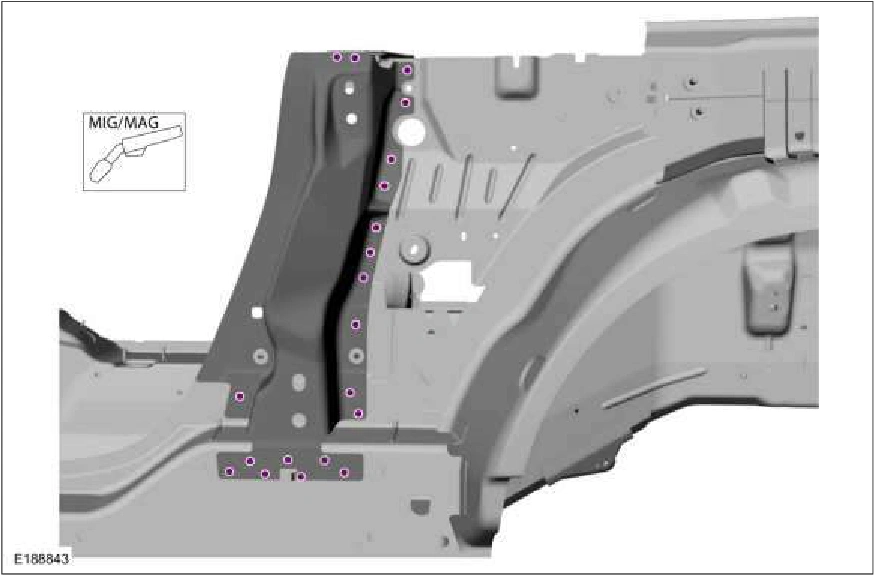

4. MIG weld the B-pillar panel. Use the General Equipment: MIG/MAG Welding Equipment

B-Pillar and Reinforcement - Convertible — original illustration 2, reference 2309Original colors & callouts · Select to enlarge

5. Apply NVH expanding foam. Material : Fusor® Flexible Foam Repair / 3M™ 08463, Fusor® 121

Source reference 2309
