B-Pillar and Reinforcement - Convertible — 2016 workshop reference 2310

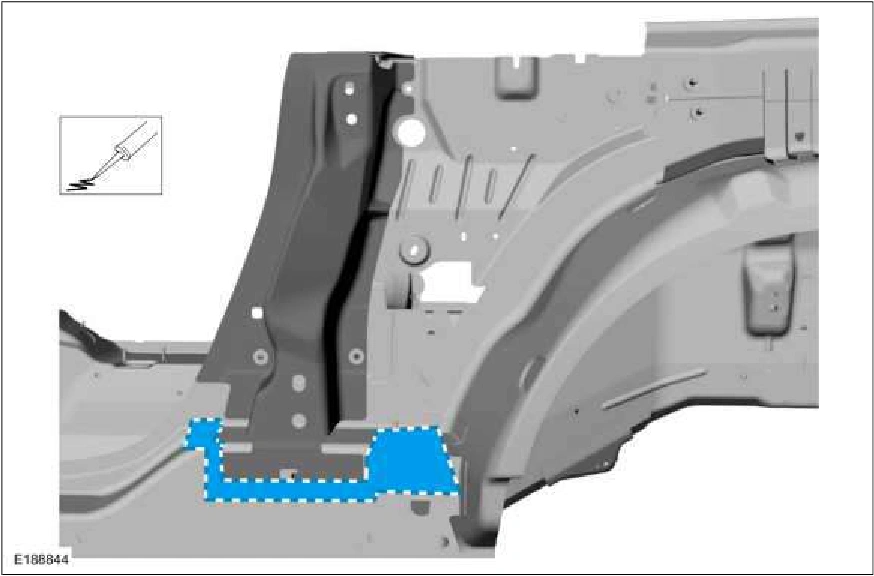

B-Pillar and Reinforcement - Convertible — original illustration 1, reference 2310Original colors & callouts · Select to enlarge

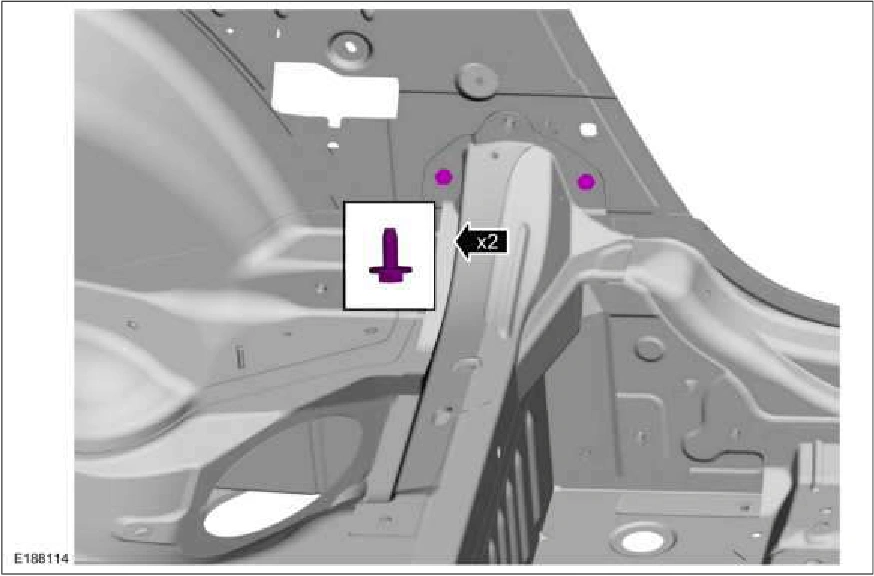

6. Install the rear floor crossmember bolts. Torque : 22 lb.ft (30 Nm)

B-Pillar and Reinforcement - Convertible — original illustration 2, reference 2310Original colors & callouts · Select to enlarge

7. Metal finish the repair area using typical metal finishing techniques.

8. Sealing work: All areas must be sealed to production level. Material : Seam Sealer / TA-2-B

9. Restore corrosion protection. Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).

10. Reposition carpeting and wiring harness.

11. Install the following items:
