Front Door Skin Panel — 2016 workshop reference 2313

2. Refer to: Front Door (501-03 Body Closures, Removal and Installation).

3. Refer to: Exterior Mirror (501-09 Rear View Mirrors, Removal and Installation).

4. Refer to: Exterior Front Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

5. Refer to: Front Door Upper Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).

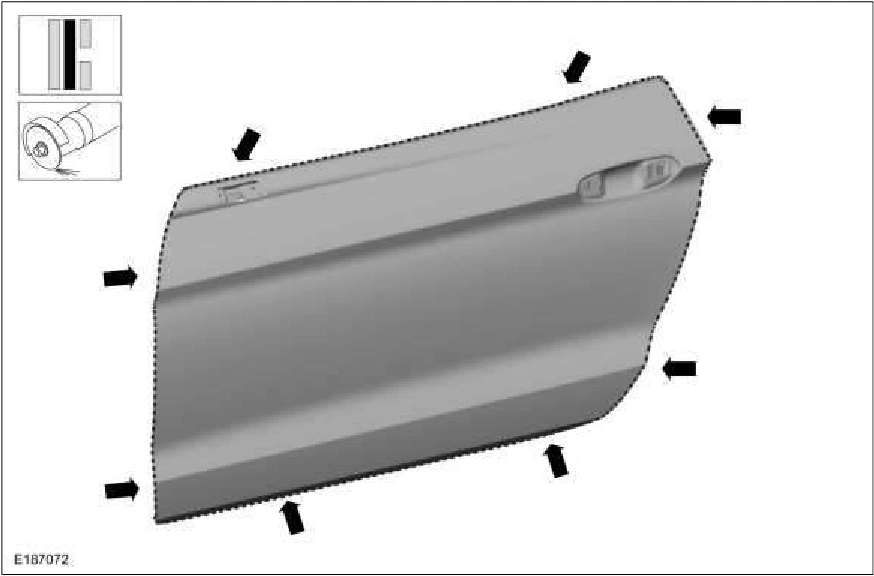

3. Carefully cut through the outer panel only. Use the General Equipment: Grinder

Front Door Skin Panel — original illustration 1, reference 2313Original colors & callouts · Select to enlarge

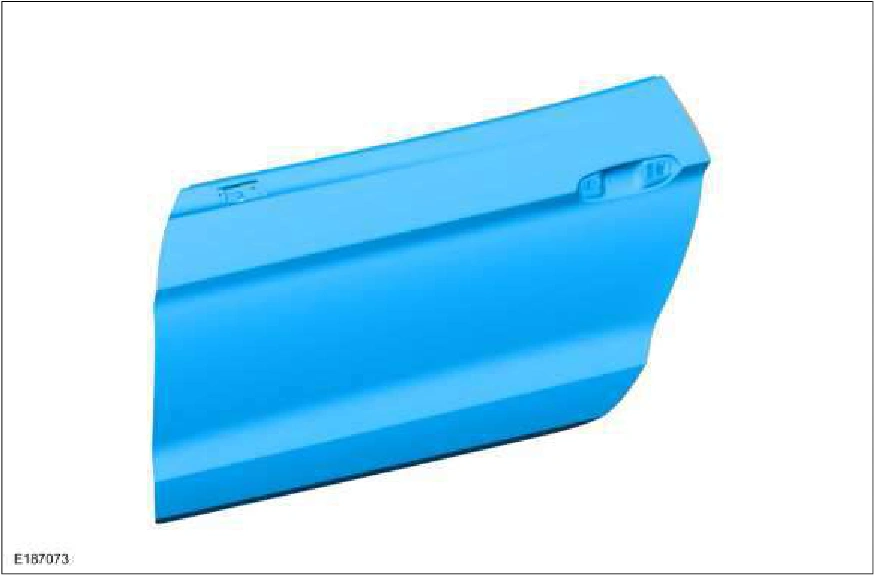

4. Remove the outer door panel.

Front Door Skin Panel — original illustration 2, reference 2313Original colors & callouts · Select to enlarge

5. Remove the remaining portion of the front door panel hem flange. Use the General Equipment: Knife
