Front Door Skin Panel — 2016 workshop reference 2315

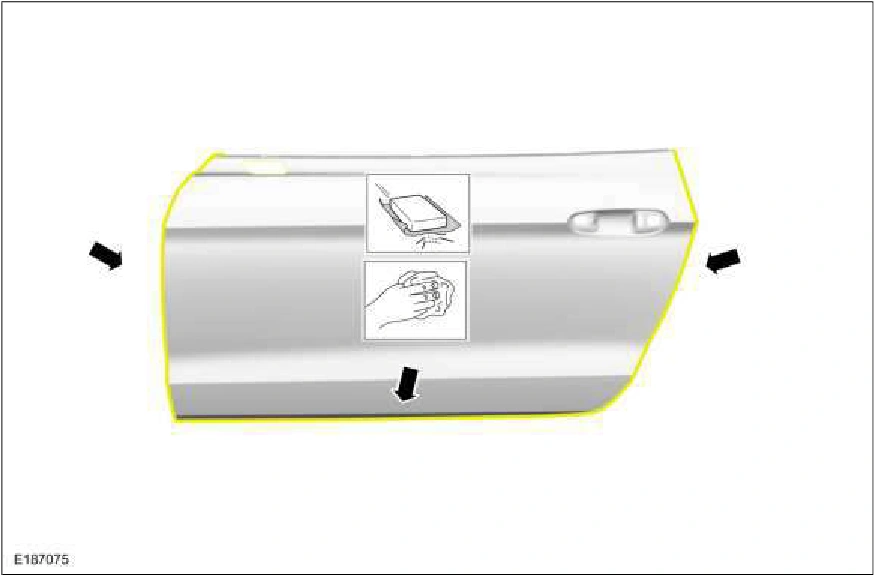

Front Door Skin Panel — original illustration 1, reference 2315Original colors & callouts · Select to enlarge

3. Install NVH mastic pads to the replacement door panel as required.

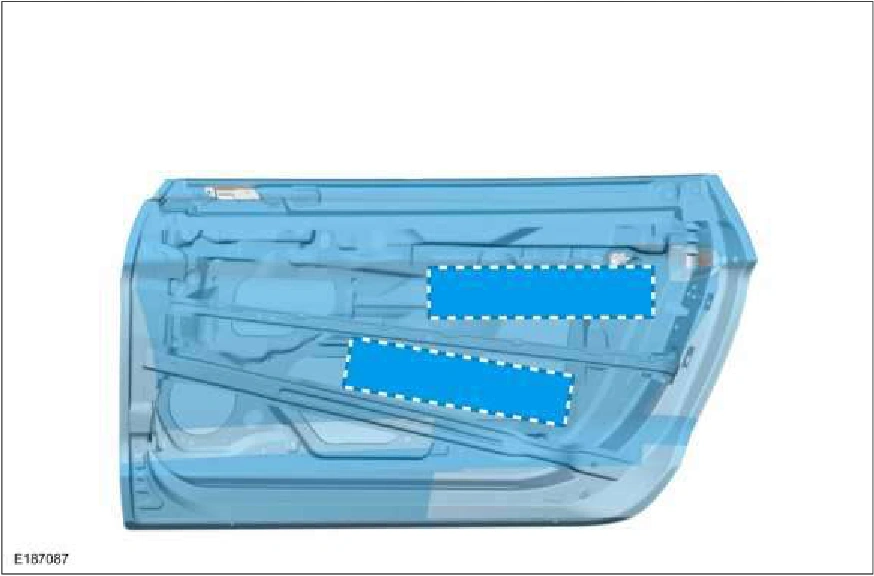

Front Door Skin Panel — original illustration 2, reference 2315Original colors & callouts · Select to enlarge

4. Apply adhesive to the door shell mating surface. Material : Metal Bonding Adhesive / TA-1, 3M™ 08115, Fusor® 108B

Source reference 2315
